Components [12/2019 - 10/2022]
WARNING: This page is about a different variant/trim than selected.

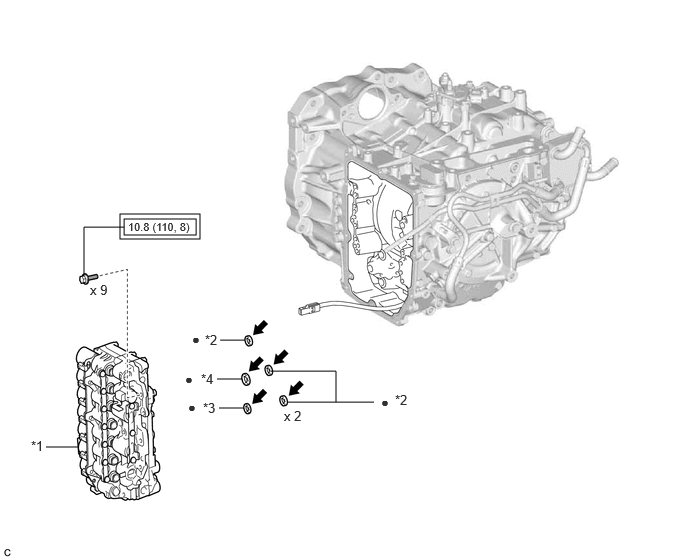

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION VALVE BODY ASSEMBLY | *2 | TRANSAXLE CASE GASKET |
| *3 | NO. 1 FRONT OIL PUMP COVER GASKET | *4 | NO. 2 FRONT OIL PUMP COVER GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
Fig 2: Valve Body Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | MANUAL VALVE | *2 | SOLENOID (SL) VALVE |
| *3 | SOLENOID (SL1) VALVE | *4 | SOLENOID (SL2) VALVE |
| *5 | SOLENOID (SL3) VALVE | *6 | SOLENOID (SL4) VALVE |
| *7 | SOLENOID (SL5) VALVE | *8 | SOLENOID (SL6) VALVE |
| *9 | SOLENOID (SLU) VALVE | *10 | SOLENOID (SLT) VALVE |
| *11 | SOLENOID LOCK PLATE | *12 | WIRE HARNESS CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | Toyota Genuine ATF WS |
