Section 108 (Battery / Charging System (A25A-FXS) - Diagnostics - Introduction)
>>
Charging System
>>
System Diagram [12/2019 - 11/2023]
>>
System Diagram [12/2019 - 11/2023]
System Diagram [12/2019 - 11/2023]
WARNING:
This page is about a different variant/trim than selected.

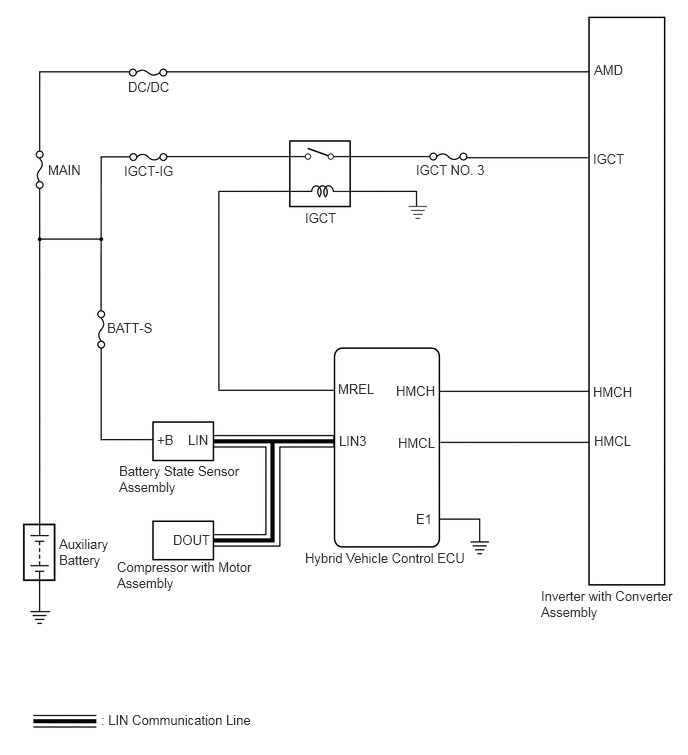

Fig 1: Charging System Diagram [12/2019 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
