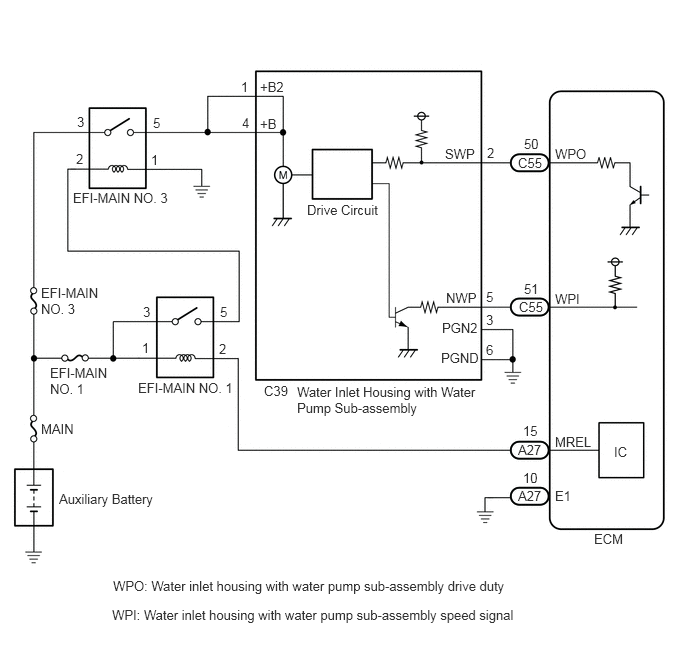

DTC P26CA-12: Engine Coolant Pump Circuit Short to Battery [12/2019 - 10/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY843932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
