DTC P2681-11: Engine Coolant Bypass Valve Circuit Short to Ground; DTC P2681-15: Engine Coolant Bypass Valve Circuit Short to Battery or Open [12/2019 - 10/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

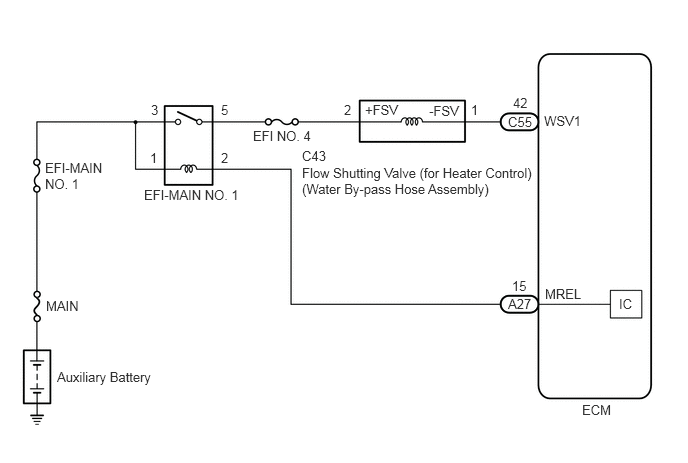

GTY848877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
