Parts Location [10/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

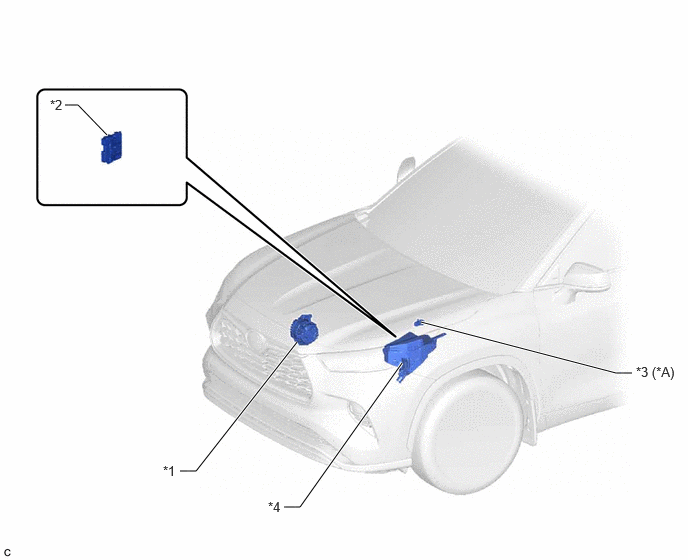

| *A | w/ Stop and Start System | - | - |
| *1 | GENERATOR ASSEMBLY | *2 | ECM |
| *3 | BATTERY STATE SENSOR ASSEMBLY | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
