Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [10/2022 - ]

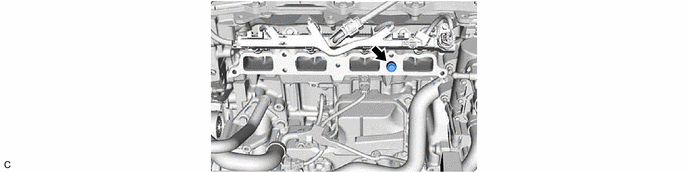

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. GTY1104371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
