Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [11/2023 - ]

  2. REMOVE AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to PROCEDURE - Step 10

  3. REMOVE AIR FUEL RATIO SENSOR (for Sensor 2)

    Refer to PROCEDURE - Step 10

  4. REMOVE NO. 1 TURBO INSULATOR
    1. GTY1104366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE EXHAUST PIPE CLAMP
    1. GTY1108602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONVERTER WITH CATALYST ASSEMBLY
    1. GTY1104367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

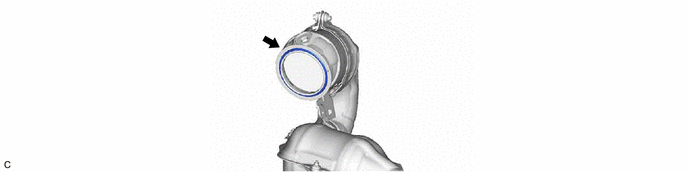

  7. REMOVE TURBINE OUTLET ELBOW GASKET
    1. GTY1104368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
