Inspection [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FUEL TANK CAP ASSEMBLY
    1. Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.
      GTY444169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Gasket

      If the result is not as specified, replace the fuel tank cap assembly.

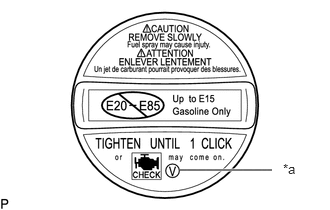

    2. Confirm that ID mark V is printed on the fuel tank cap assembly.
      GTY768200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ID Mark
      WARNING:

      Make sure to use a fuel tank cap assembly that has the same ID mark, or a malfunction may occur in the fuel system.
