Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 7 [11/2023 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 8 [11/2023 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 9 [11/2023 - ]

  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  5. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  6. DISCONNECT NO. 1 RADIATOR HOSE

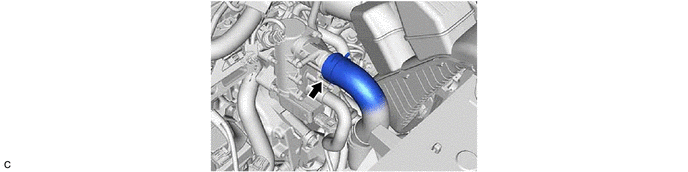

    1. GTY1106097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 3 WATER BY-PASS HOSE

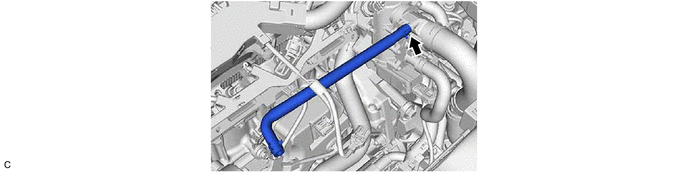

    1. GTY1076730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT WATER BY-PASS HOSE ASSEMBLY

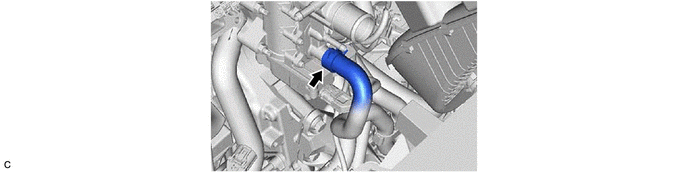

    1. GTY1106094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT INLET HEATER WATER HOSE

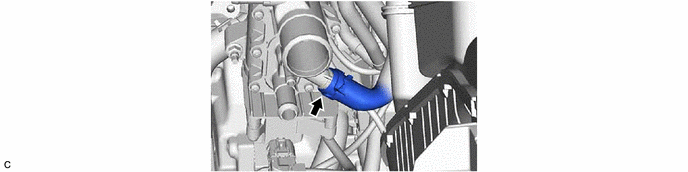

    1. GTY1108956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE WATER CONTROL VALVE

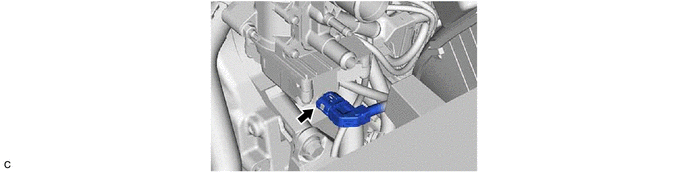

    1. GTY1106096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

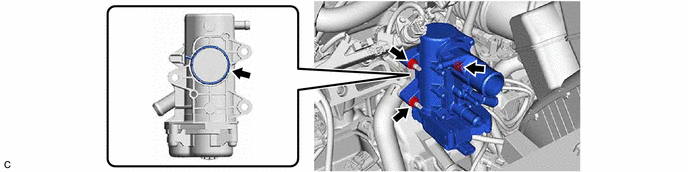

    2. GTY1106095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
