Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  5. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  6. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 1

  7. REMOVE HEADLIGHT ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  8. REMOVE FRONT BUMPER ENERGY ABSORBER

    for Sport Package: Refer to PROCEDURE - Step 22

    except Sport Package: Refer to PROCEDURE - Step 25

  9. REMOVE FRONT BUMPER REINFORCEMENT

    for GTMC Made: Refer to PROCEDURE - Step 24

    for TFTM Made: Refer to PROCEDURE - Step 27

  10. REMOVE THERMISTOR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

  11. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 7

  12. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 4

  13. REMOVE NO. 1 RADIATOR AIR GUIDE LH
    1. GTY1108071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

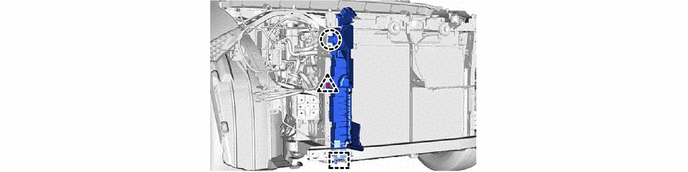

  14. REMOVE NO. 1 RADIATOR AIR GUIDE RH
    1. GTY1109371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

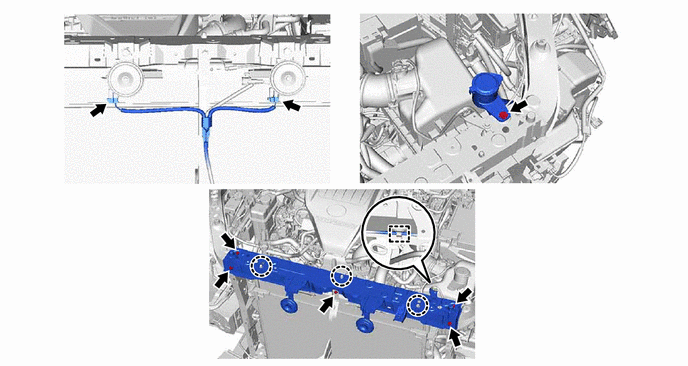

  15. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
    1. GTY1104922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

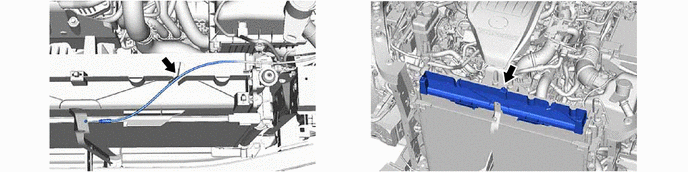

  16. REMOVE NO. 2 RADIATOR AIR GUIDE
    1. GTY1104923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1106142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

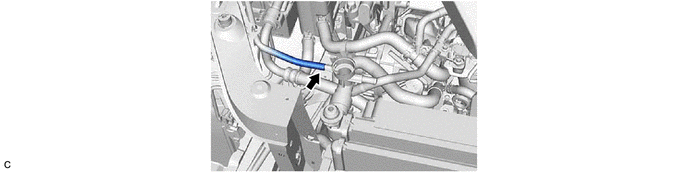

  18. DISCONNECT NO. 6 WATER BY-PASS HOSE
    1. GTY1106141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

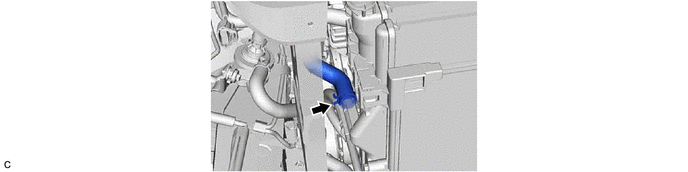

  19. DISCONNECT NO. 1 INTERCOOLER COOLING WATER HOSE
    1. GTY1106140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

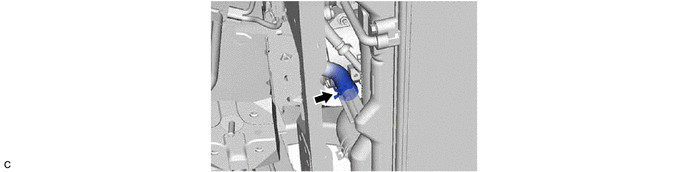

  20. DISCONNECT NO. 5 INTERCOOLER COOLING WATER HOSE
    1. GTY1106137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

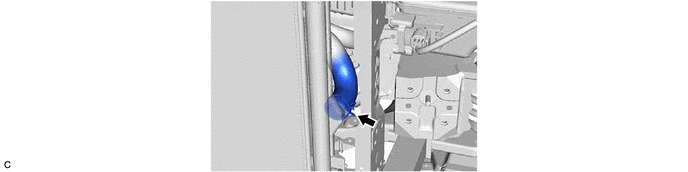

  21. DISCONNECT NO. 3 RADIATOR HOSE
    1. GTY1106138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

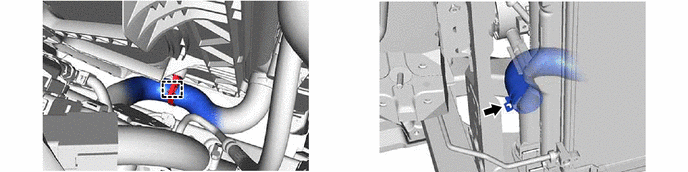

  22. DISCONNECT NO. 2 RADIATOR HOSE
    1. GTY1104921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE RADIATOR ASSEMBLY
    1. GTY1107186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the cooling fan motor connector.
      2. Disengage the clamp to disconnect the wire harness from the fan with motor assembly.
      3. Rotate the lever while pushing the lock, and disconnect the cooling fan motor connector.
        NOTE:

        After disconnecting the cooling fan motor connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the cooling fan motor connector.

      4. Disengage the 2 clamps to disconnect the wire harness from the fan with motor assembly.
    2. GTY1108268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws.
      2. Disengage the 2 guides to separate the cooler condenser assembly from the radiator assembly (for intercooler).
        NOTE:

        Do not damage the cooler condenser assembly when separating the radiator assembly (for intercooler).

      3. Remove the radiator assembly (for intercooler) and radiator assembly with the fan with motor assembly from the vehicle body.
        NOTE:

        Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly (for intercooler) and radiator assembly with the fan with motor assembly.

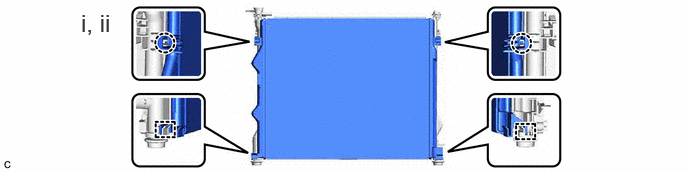

    3. GTY1106666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws.
      2. Disengage the 2 guides to remove the radiator assembly (for intercooler) from the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when removing the radiator assembly (for intercooler).

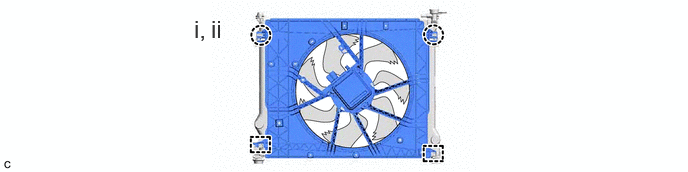

    4. GTY1109076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws.
      2. Disengage the 2 guides to remove the fan with motor assembly from the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when removing the fan with motor assembly.

  24. REMOVE RADIATOR SUPPORT CUSHION
    1. GTY1077273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE LOWER RADIATOR SUPPORT
    1. GTY1077274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
