Parts Location [10/2022 - ]: Illustration

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

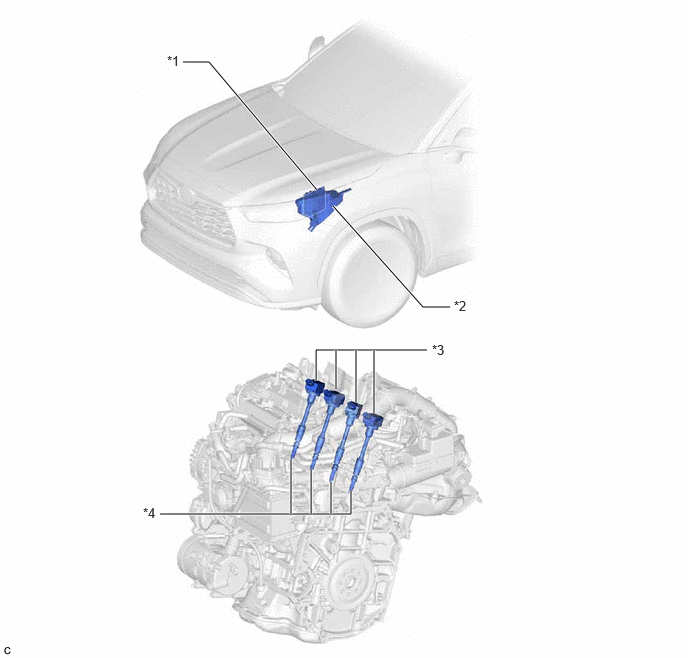

GTY1104101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- INJ FUSE
-IGT/INJ RELAY
*3 IGNITION COIL ASSEMBLY *4 SPARK PLUG
