Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

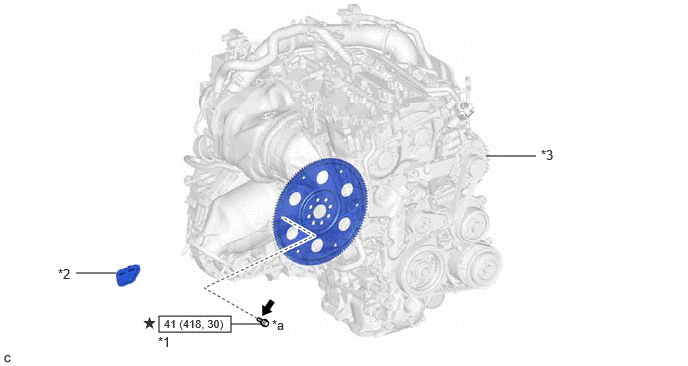

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (1 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT | *2 | FLYWHEEL HOUSING UNDER COVER |
| *3 | ENGINE ASSEMBLY WITH TRANSAXLE | - | - |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ||
| * | Precoated part | - | - |

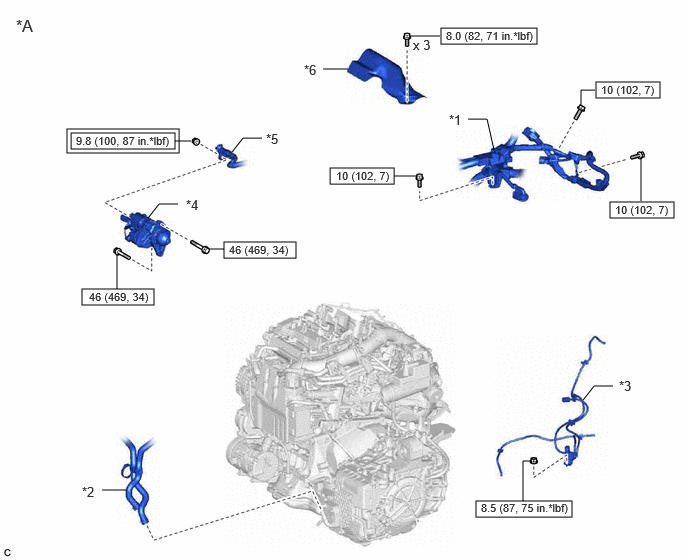

Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (2 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81E | - | - |
| *1 | ENGINE WIRE | *2 | WATER BY-PASS HOSE ASSEMBLY |
| *3 | VACUUM HOSE SUB-ASSEMBLY | *4 | STARTER ASSEMBLY |
| *5 | NO. 2 ENGINE WIRE | *6 | STEERING GEAR HEAT INSULATOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (3 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81F | - | - |
| *1 | ENGINE WIRE | *2 | WATER BY-PASS HOSE ASSEMBLY |
| *3 | VACUUM HOSE SUB-ASSEMBLY | *4 | STARTER ASSEMBLY |
| *5 | NO. 2 ENGINE WIRE | *6 | STEERING GEAR HEAT INSULATOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (4 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FRAME ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

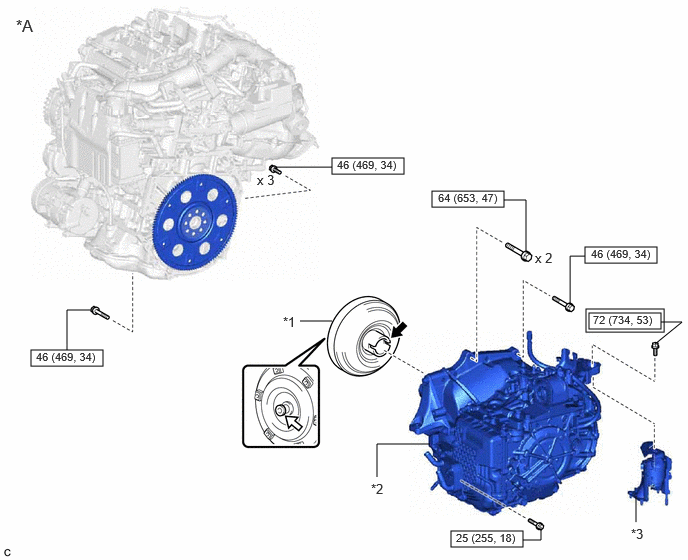

Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (5 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81E | - | - |
| *1 | TORQUE CONVERTER ASSEMBLY | *2 | AUTOMATIC TRANSAXLE ASSEMBLY |
| *3 | REAR ENGINE MOUNTING INSULATOR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| MP grease | Toyota Genuine Clutch Spline Grease or equivalent |

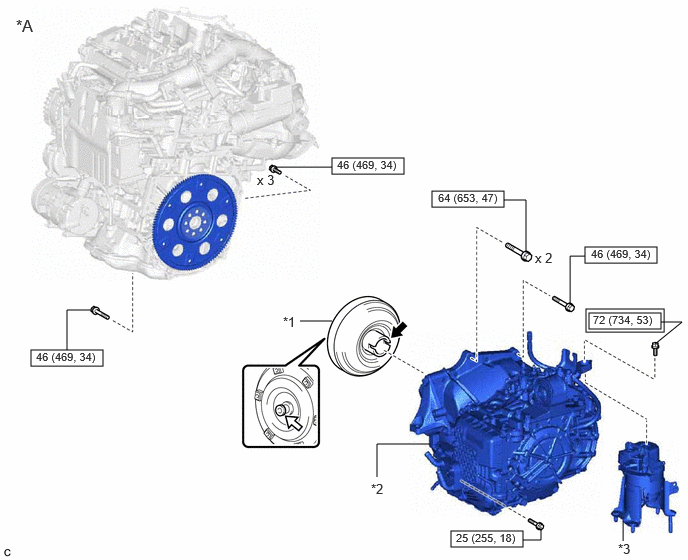

Fig 6: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (6 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81F | - | - |
| *1 | TORQUE CONVERTER ASSEMBLY | *2 | AUTOMATIC TRANSAXLE ASSEMBLY |
| *3 | REAR ENGINE MOUNTING INSULATOR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| MP grease | Toyota Genuine Clutch Spline Grease or equivalent |

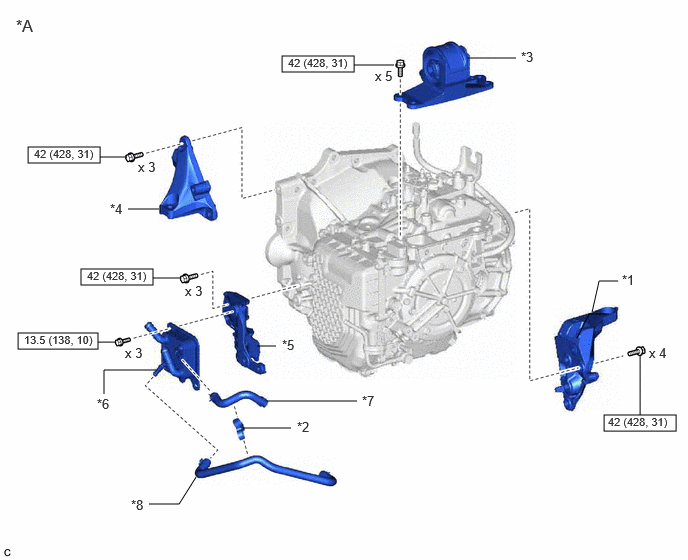

Fig 7: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (7 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81E | - | - |
| *1 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | *2 | NO. 1 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP |
| *3 | ENGINE MOUNTING INSULATOR LH | *4 | FRONT ENGINE MOUNTING BRACKET |
| *5 | OIL COOLER BRACKET | *6 | TRANSMISSION OIL COOLER |
| *7 | OUTLET NO. 1 OIL COOLER HOSE | *8 | INLET NO. 1 OIL COOLER HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 8: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (8 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81F | - | - |
| *1 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | *2 | PROPELLER SHAFT HEAT INSULATOR |
| *3 | ENGINE MOUNTING INSULATOR LH | *4 | FRONT ENGINE MOUNTING BRACKET |
| *5 | OIL COOLER BRACKET | *6 | TRANSMISSION OIL COOLER |
| *7 | OUTLET NO. 1 OIL COOLER HOSE | *8 | INLET NO. 1 OIL COOLER HOSE |
| *9 | NO. 1 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

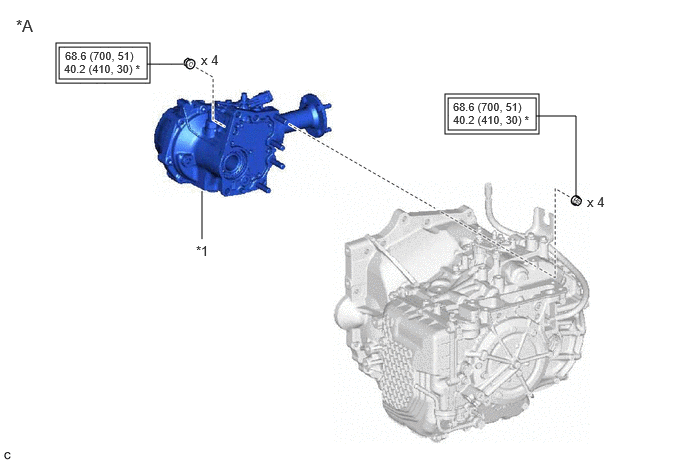

Fig 9: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (9 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81F | - | - |
| *1 | TRANSFER ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with SST and a union nut wrench |

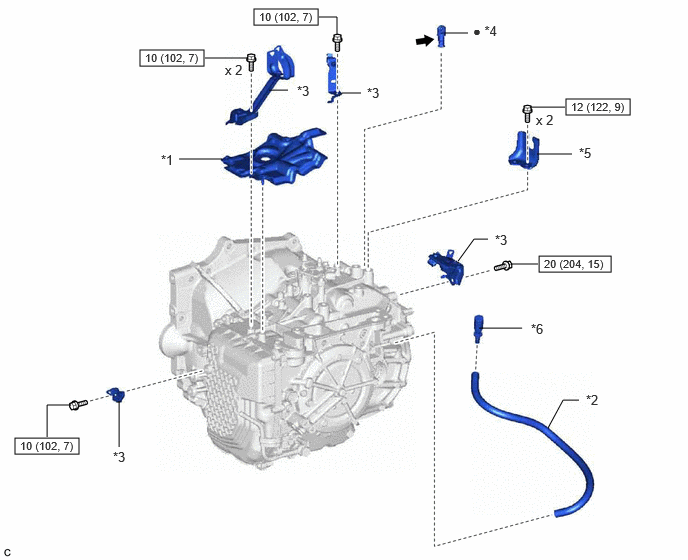

Fig 10: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (10 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | UPPER TRANSAXLE CASE COVER | *2 | BREATHER PLUG HOSE |
| *3 | WIRE HARNESS CLAMP BRACKET | *4 | TRANSMISSION CASE PLUG ASSEMBLY |
| *5 | NO. 1 TRANSMISSION CONTROL CABLE BRACKET | *6 | BREATHER PLUG SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
Fig 11: Automatic Transaxle Assembly Replacement Components With Torque Specifications [10/2022 - ] (11 Of 11)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for UA81F | - | - |
| *1 | TRANSFER AND TRANSAXLE SETTING STUD BOLT | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
