DTC P0740-15: Torque Converter Clutch Circuit Short to Battery or Open [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TRANSMISSION WIRE (SOLENOID (SL) VALVE)

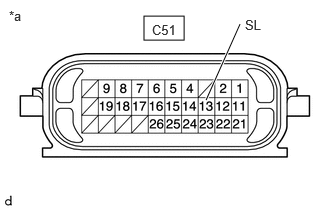

    1. Disconnect the C51 transmission wire connector.
      GTY1119401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Transmission Wire)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C51-13 (SL) - Body ground 20°C (68°F) 11 to 15 Ω
      C51-13 (SL) - Other terminals Always 10 kΩ or higher
    3. Connect the C51 transmission wire connector.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  4

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
    1. Disconnect the C89 ECM connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C89-42 (SL) - Body ground 20°C (68°F) 11 to 15 Ω
      C89-42 (SL) - Other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

    Result:

    OK

    See step  3

  3. REPLACE ECM

    Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    PERFORM REGISTRATION. Refer to  REGISTRATION [10/2022 - ]

  4. INSPECT SOLENOID (SL) VALVE
    1. Remove the solenoid (SL) valve.
      GTY720881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid (SL) Valve

      Refer to DISASSEMBLY [10/2022 - ]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Solenoid (SL) valve connector terminal - Solenoid (SL) valve body 20°C (68°F) 11 to 15 Ω
    3. Connect a positive (+) lead from the battery to the terminal of the solenoid valve connector, and a negative (-) lead to the solenoid body. Check that the valve moves and makes an operating sound.

      OK

      Valve moves and makes an operating sound.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE TRANSMISSION WIRE. Refer to  REMOVAL [10/2022 - ]

    Result:

    NG

    REPLACE SOLENOID (SL) VALVE. Refer to  REMOVAL [10/2022 - ]
