DTC P0615-12: Starter Relay Circuit Short to Battery [10/2022 - 11/2023]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

w/o Stop and Start System:

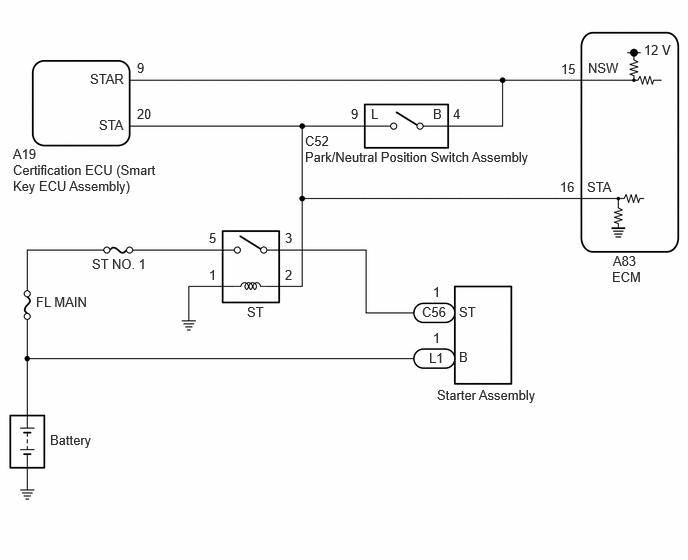

Fig 1: w/o Stop and Start System: [10/2022 - 11/2023]
GTY1119033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Stop and Start System:

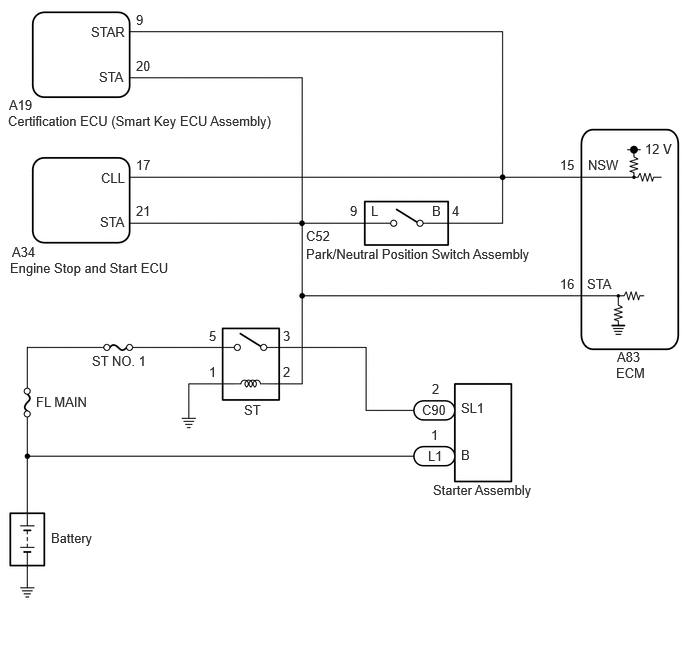

Fig 2: w/ Stop and Start System: [10/2022 - 11/2023]
GTY1111402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
