Parts Location [10/2022 - ]: Illustration

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

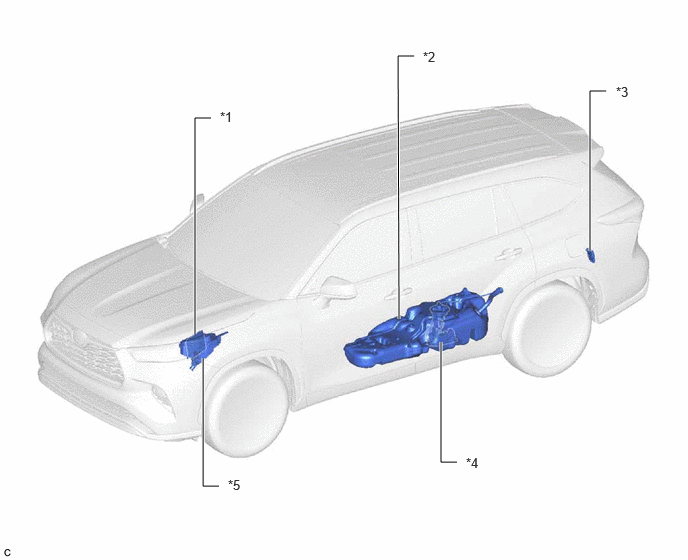

*1	ECM	*2	FUEL TANK SUB-ASSEMBLY
*3	FUEL PUMP CONTROL ECU	*4	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL PUMP (for Low Pressure) - FUEL SENDER GAUGE ASSEMBLY - FUEL MAIN VALVE ASSEMBLY
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 2 RELAY - IGT/INJ RELAY - INJ FUSE	-	-

*1	PORT FUEL INJECTOR ASSEMBLY	*2	DIRECT FUEL INJECTOR ASSEMBLY
*3	NO. 2 FUEL PRESSURE SENSOR (for Low Pressure)	*4	FUEL PRESSURE SENSOR (for High Pressure)
*5	FUEL PUMP ASSEMBLY (for High Pressure)	-	-
