Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION WIRE

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    1. GTY1062063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSAXLE CASE GASKET

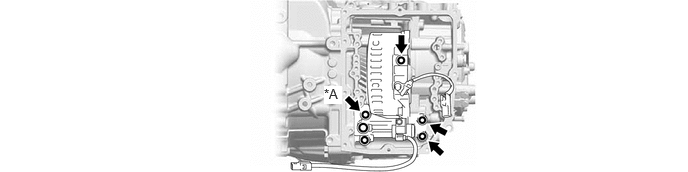

    1. GTY1112742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop And Start System - -
  4. REMOVE FRONT OIL PUMP COVER GASKET
    1. GTY1063148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
