Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

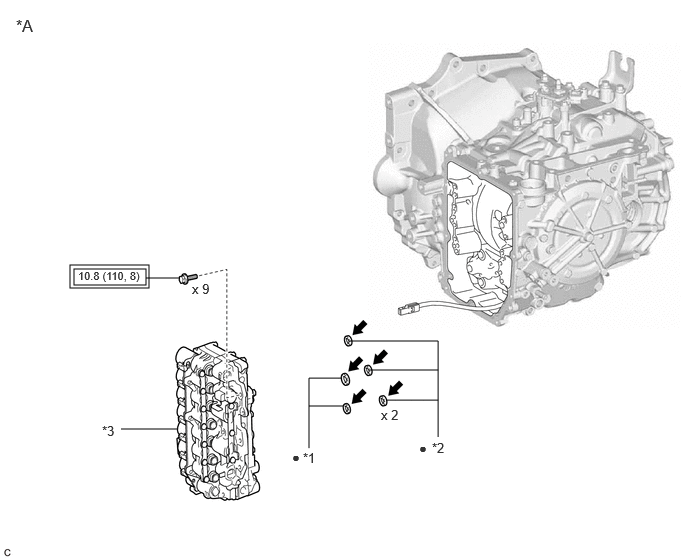

| Callout |
Description |
Callout |
Description |
| *A |
w/o Stop And Start System |
- |
- |
| *1 |
FRONT OIL PUMP COVER GASKET |
*2 |
TRANSAXLE CASE GASKET |
| *3 |
TRANSMISSION VALVE BODY ASSEMBLY |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

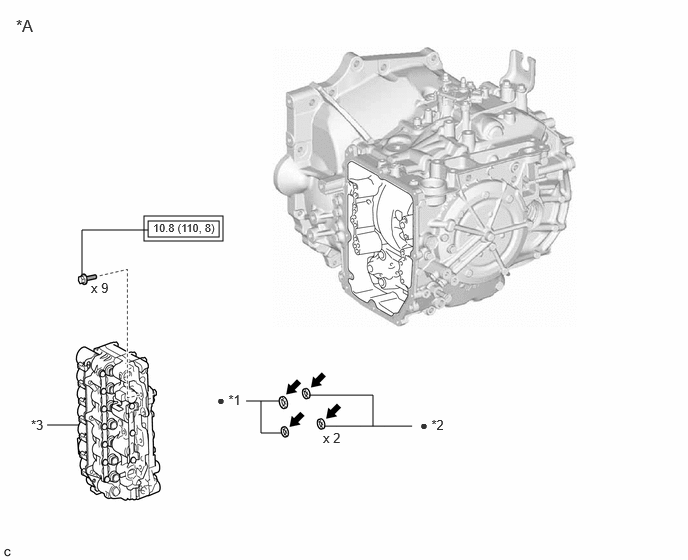

| Callout |
Description |
Callout |
Description |
| *A |
w/ Stop And Start System |
- |
- |
| *1 |
FRONT OIL PUMP COVER GASKET |
*2 |
TRANSAXLE CASE GASKET |
| *3 |
TRANSMISSION VALVE BODY ASSEMBLY |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
• |
Non-reusable part |
|
Toyota Genuine ATF WS |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

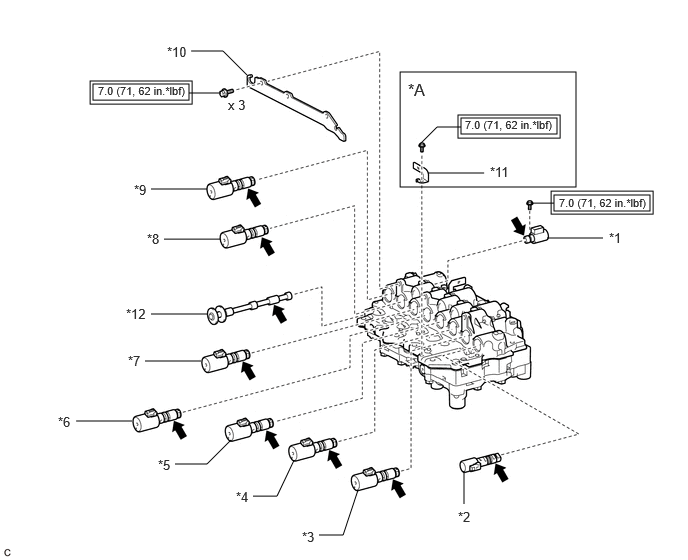

| Callout |
Description |
Callout |
Description |
| *A |
w/ Stop And Start System |
- |
- |
| *1 |
SOLENOID (SL) VALVE |
*2 |
SOLENOID (SLT) VALVE |
| *3 |
SOLENOID (SL2) VALVE |
*4 |
SOLENOID (SL1) VALVE |
| *5 |
SOLENOID (SL3) VALVE |
*6 |
SOLENOID (SL4) VALVE |
| *7 |
SOLENOID (SL6) VALVE |
*8 |
SOLENOID (SL5) VALVE |
| *9 |
SOLENOID (SLU) VALVE |
*10 |
SOLENOID LOCK PLATE |
| *11 |
WIRE HARNESS CLAMP |
*12 |
MANUAL VALVE |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
Toyota Genuine ATF WS |
