Replacement [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

REMOVE FRONT DRIVE SHAFT OIL SEAL LH

Using SST, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

NOTE:

Do not damage the automatic transaxle case sub-assembly.

INSTALL FRONT DRIVE SHAFT OIL SEAL LH

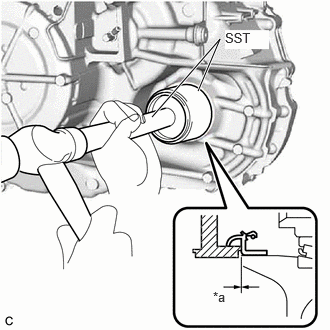

Using SST and a hammer, install a new front drive shaft oil seal LH to the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Depth

SST: 09316-10010
SST: 09950-70010
1. 09951-07100

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Be sure to install the front drive shaft oil seal LH in the correct direction.
Make sure to install the front drive shaft oil seal LH as specified, otherwise malfunctions such as a fluid leak will occur.
Do not damage the lip of the front drive shaft oil seal LH.

INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
Refer to INSTALLATION [10/2022 - ]
