Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

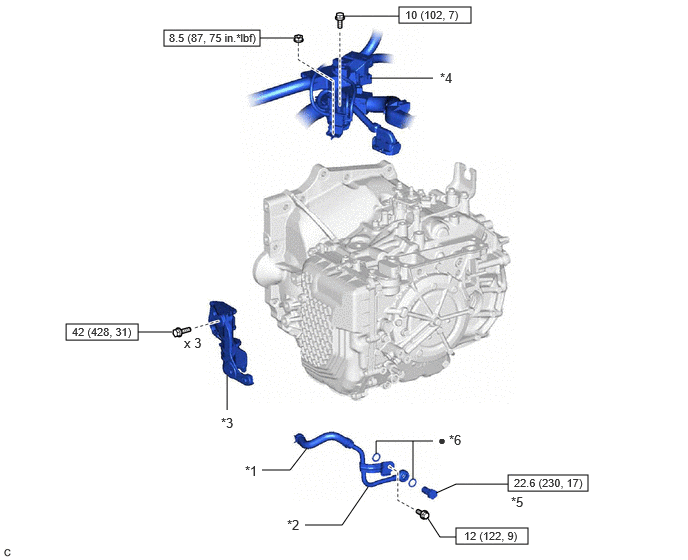

| Callout |
Description |
Callout |
Description |
| *1 |
OUTLET NO. 1 OIL COOLER HOSE |
*2 |
OIL COOLER UNION SUB-ASSEMBLY |
| *3 |
OIL COOLER BRACKET |
*4 |
ENGINE WIRE |
| *5 |
OIL COOLER UNION BOLT |
*6 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for AISIN Made |
*B |
for TMMWV Made |
| *1 |
TRANSMISSION CASE SIDE COVER |
- |
- |
| *a |
HINT:
As the illustration shown is an example, the actual details may differ. |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

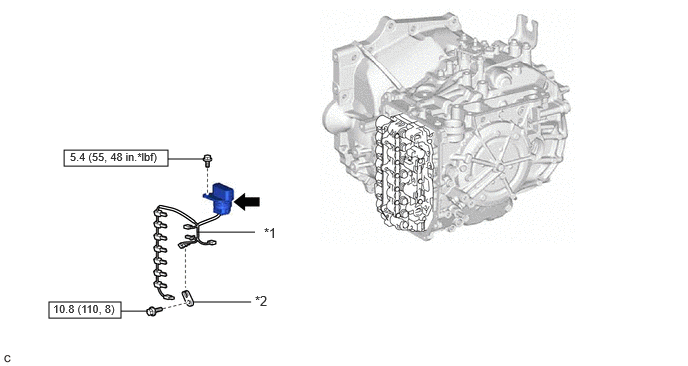

| Callout |
Description |
Callout |
Description |
| *1 |
TRANSMISSION WIRE |
*2 |
TEMPERATURE SENSOR CLAMP |
|
N.m (kgf/cm, ft.lbf): Specified torque |
|
Toyota Genuine ATF WS |
