Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT LOCK RELEASE BUTTON COVER

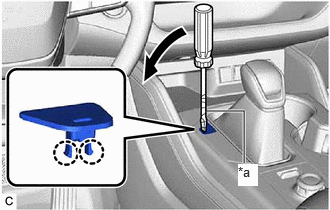

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the shift position indicator.
      GTY1111643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the shift lock release button cover and shift position indicator.

  3. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  4. REMOVE NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 20 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 20 [11/2023 - ]

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 17 [11/2023 - ]

  6. REMOVE FRONT CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 41 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 41 [11/2023 - ]

  7. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    NOTE:

    Before disconnecting the transmission control cable assembly, check that the shift lever is in N.

    1. Disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY943719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY858617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Counterclockwise
  8. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Disconnect the transmission control switch connector.
      GTY929506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Control Switch Connector
      *b Shift Lock Control ECU Connector
    2. Disconnect the shift lock control ECU connector.
    3. Disengage the 2 clamps to disconnect the wire harness from the transmission floor shift assembly.
    4. Remove the 4 bolts and transmission floor shift assembly from the shift and select lever support.
      GTY917658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
