Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    See step  1

  2. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1

  3. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE SNOW SWITCH (PATTERN SELECT SWITCH)
    1. Disconnect the snow switch (pattern select switch) connector.
      GTY1116517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the snow switch (pattern select switch) from the console panel sub-assembly.
      GTY1116516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY

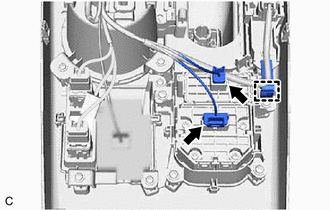

    1. Disconnect the 2 No. 1 pattern select switch assembly connectors.
      GTY1119171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 4 screws and No. 1 pattern select switch assembly from the console panel sub-assembly.
      GTY1116518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
