Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Temporarily install the park/neutral position switch assembly to the automatic transaxle case sub-assembly with the 2 bolts.
      NOTE:

      Before installing the park/neutral position switch assembly, remove any dirt or rust on the manual valve lever shaft sub-assembly. Be sure to install the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be installed correctly.

    2. Temporarily install the transmission control shaft lever to the manual valve lever shaft sub-assembly.
    3. Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.
      GTY1114939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a P Position
      *b N Position
    4. Remove the transmission control shaft lever from the manual valve lever shaft sub-assembly.
    5. Align the protrusion with the neutral basic line.

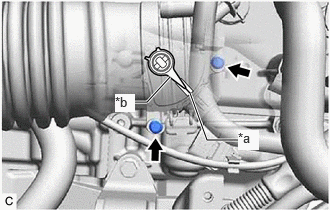

      GTY1117120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Protrusion
    6. Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    7. Install the transmission control shaft lever to the manual valve lever shaft sub-assembly with the washer and nut.

      Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)

    8. Connect the park/neutral position switch assembly connector.
  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.
    2. Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.

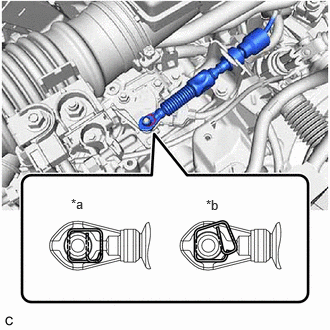

      GTY1111405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
      NOTE:

      Before connecting the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

  3. INSTALL BATTERY CLAMP SUB-ASSEMBLY
    1. Install the battery clamp sub-assembly to the vehicle body with the 4 bolts and nut.
      GTY1117288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A), Nut (A)

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      Bolt (B)

      Torque: 18.5 N.m (189 kgf/cm, 14 ft.lbf)

  4. CONNECT WIRE HARNESS
    1. Engage the 3 clamps to connect the wire harness to the battery clamp sub-assembly.
  5. INSTALL BATTERY

    Refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]

  6. INSTALL AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]

  7. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  8. INSTALL COOL AIR INTAKE DUCT SEAL
  9. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION

    See step  2

  10. INSPECT SHIFT LEVER POSITION

    See step  2

  11. ADJUST SHIFT LEVER POSITION

    Refer to ADJUSTMENT [10/2022 - ]
