Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

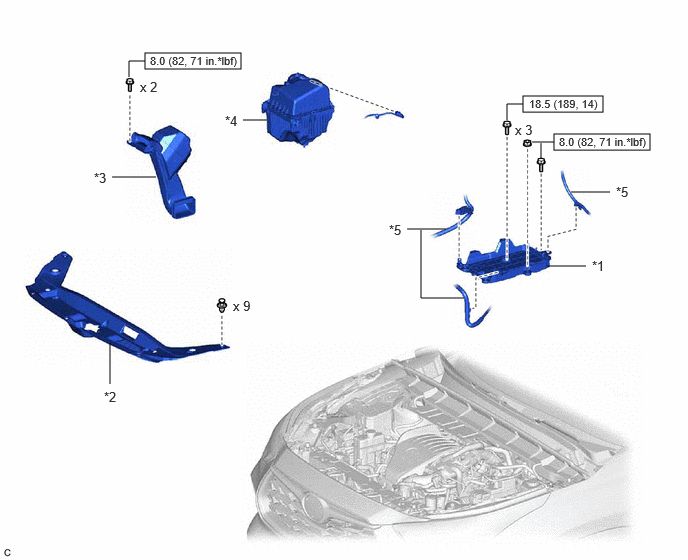

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications [10/2022 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | AIR CLEANER ASSEMBLY |
| *5 | WIRE HARNESS | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Park / Neutral Position Switch Replacement Components With Torque Specifications [10/2022 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | *2 | TRANSMISSION CONTROL SHAFT LEVER |
| *3 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *4 | WASHER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
