Installation [10/2022 - ]: Procedure

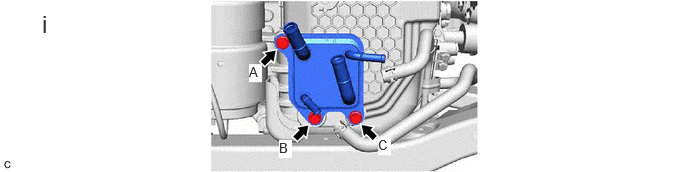

- INSTALL TRANSMISSION OIL COOLER

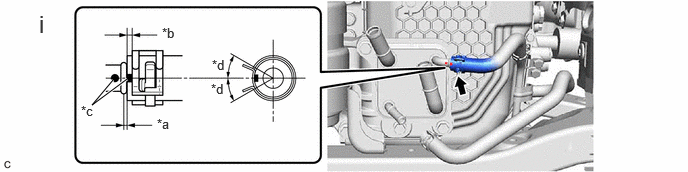

- CONNECT OUTLET NO. 1 OIL COOLER HOSE
*a 0 to 3 mm (0 to 0.118 in.) *b 2 to 7 mm (0.0787 to 0.276 in.) *c Paint Mark *d 30° (Paint Mark Location) - Connect the outlet No. 1 oil cooler hose to the transmission oil cooler and slide the clip to secure it.NOTE:
- Make sure to slide the outlet No. 1 oil cooler hose until it contacts the hose stopper of the transmission oil cooler.
- Make sure to align the paint mark of the outlet No. 1 oil cooler hose with paint mark of the transmission oil cooler.
- Make sure that the paint mark of the outlet No. 1 oil cooler hose and clip are within the location shown in the illustration.
- Connect the outlet No. 1 oil cooler hose to the transmission oil cooler and slide the clip to secure it.

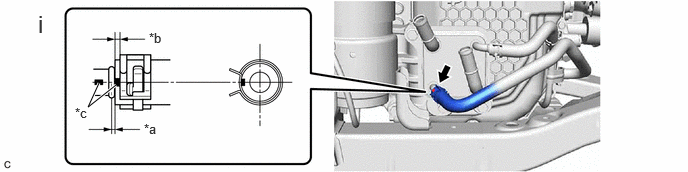

- CONNECT INLET NO. 1 OIL COOLER HOSE
*a 0 to 3 mm (0 to 0.118 in.) *b 2 to 7 mm (0.0787 to 0.276 in.) *c Paint Mark - - - Connect the inlet No. 1 oil cooler hose to the transmission oil cooler and slide the clip to secure it.NOTE:
- Make sure to slide the inlet No. 1 oil cooler hose until it contacts the hose stopper of the transmission oil cooler.
- Make sure to align the paint mark of the inlet No. 1 oil cooler hose with the paint mark of the transmission oil cooler.
- Make sure that the clip is within the location shown in the illustration.
- Connect the inlet No. 1 oil cooler hose to the transmission oil cooler and slide the clip to secure it.

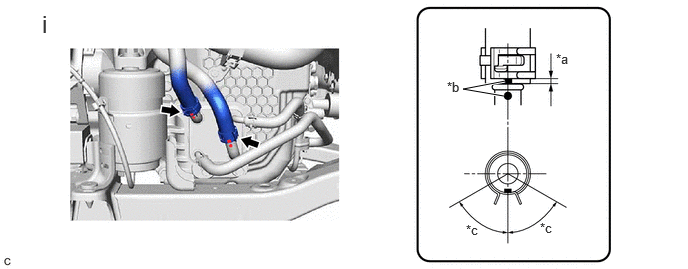

- CONNECT WATER BY-PASS HOSE ASSEMBLY
*a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark *c 60° (Claw of Clip Location) - - - Connect the water by-pass hose assembly to the transmission oil cooler and slide the 2 clips to secure it.NOTE:
- Make sure to slide the water by-pass hose assembly until it contacts the hose stopper of the transmission oil cooler.
- Make sure to align the paint mark of the water by-pass hose assembly with the paint mark of the transmission oil cooler.
- Make sure that the claws of the clip are within the location shown in the illustration.
- Connect the water by-pass hose assembly to the transmission oil cooler and slide the 2 clips to secure it.
- INSTALL NO. 1 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP
- INSTALL ENGINE WIRE
- INSTALL AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 4 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 4 [11/2023 - ]
- INSTALL INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]
- INSTALL COOL AIR INTAKE DUCT SEAL
- for Sport Package
Refer to PROCEDURE - Step 4
- except Sport Package
Refer to PROCEDURE - Step 4
- for Sport Package
- ADD ENGINE COOLANT
Refer to PROCEDURE - Step 2
- ADJUST AUTOMATIC TRANSAXLE FLUID
Refer to ADJUSTMENT [10/2022 - ]
- INSPECT FOR ENGINE COOLANT LEAK
Refer to PROCEDURE - Step 1
- INSPECT FOR AUTOMATIC TRANSAXLE FLUID LEAK
- INSTALL FRONT FENDER APRON SEAL LH
Refer to PROCEDURE - Step 82 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 82 [11/2023 - ]
- INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 84 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 84 [11/2023 - ]
- INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 85 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 85 [11/2023 - ]
- INSTALL FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 86 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 86 [11/2023 - ]
- INSTALL FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 87 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 87 [11/2023 - ]
