Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Oil Cooler Replacement Components With Torque Specifications [10/2022 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
*5	FRONT FENDER APRON SEAL LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

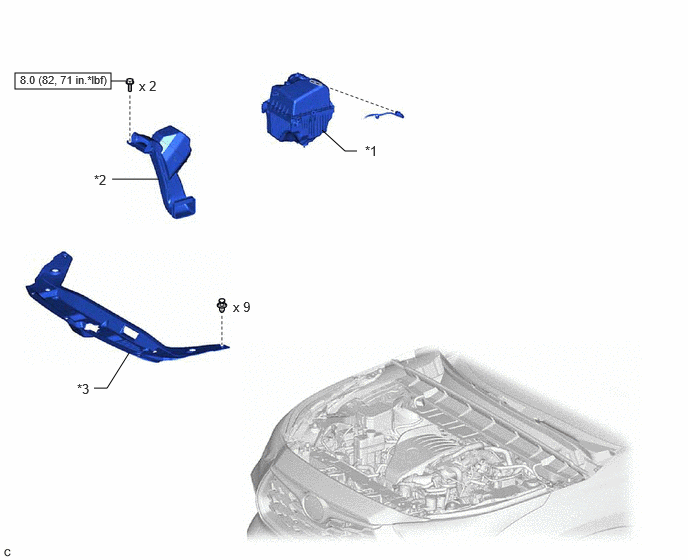

Fig 2: Oil Cooler Replacement Components With Torque Specifications [10/2022 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER ASSEMBLY	*2	INLET AIR CLEANER ASSEMBLY
*3	COOL AIR INTAKE DUCT SEAL	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Oil Cooler Replacement Components With Torque Specifications [10/2022 - ] (3 Of 4)

Callout	Description	Callout	Description
*1	REFILL PLUG	*2	NO. 1 TRANSMISSION OIL FILLER TUBE
*3	OVERFLOW PLUG	*4	GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Toyota Genuine ATF WS	-	-

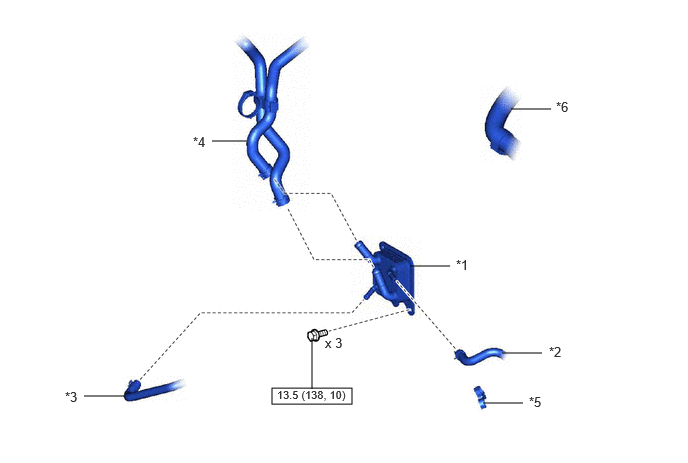

Fig 4: Oil Cooler Replacement Components With Torque Specifications [10/2022 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	TRANSMISSION OIL COOLER	*2	OUTLET NO. 1 OIL COOLER HOSE
*3	INLET NO. 1 OIL COOLER HOSE	*4	WATER BY-PASS HOSE ASSEMBLY
*5	NO. 1 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP	*6	ENGINE WIRE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
