Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

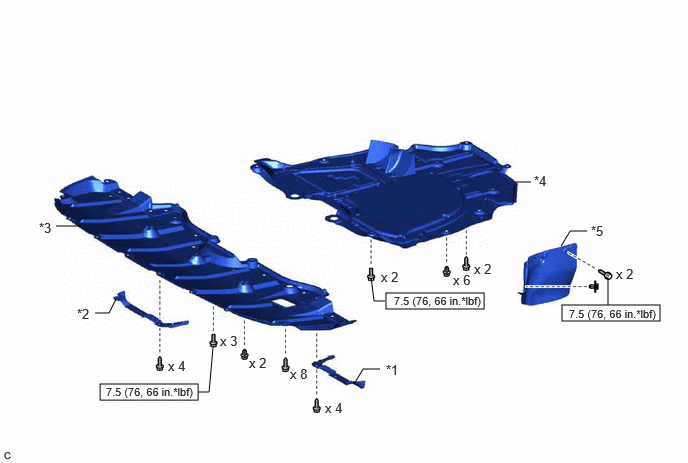

Fig 1: Automatic Transaxle Fluid Replacement Components With Torque Specifications [10/2022 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *5 | FRONT FENDER APRON SEAL LH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

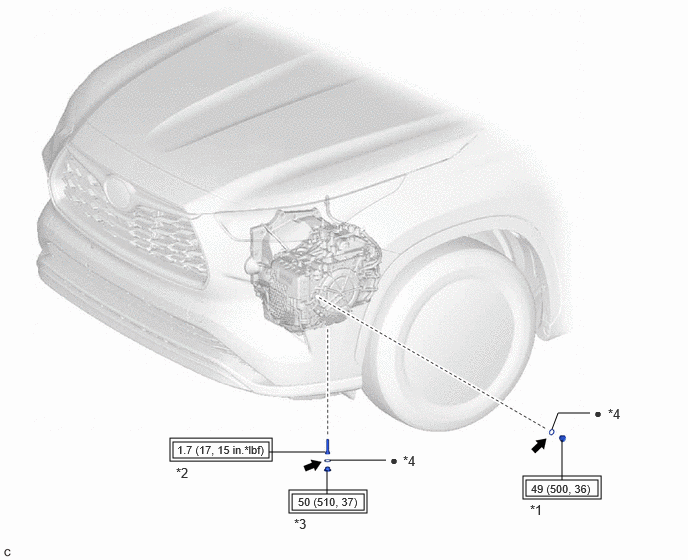

Fig 2: Automatic Transaxle Fluid Replacement Components With Torque Specifications [10/2022 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
