Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
- After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
  Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2
DRAIN COOLANT (for Intercooler)
Refer to REPLACEMENT [10/2022 - ]
REMOVE V-RIBBED BELT
Refer to REMOVAL [10/2022 - ]

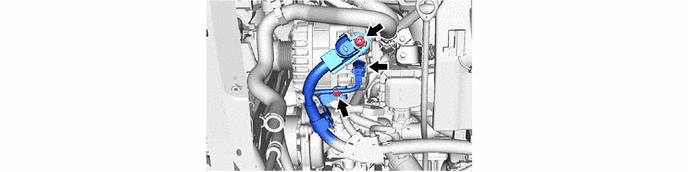

DISCONNECT NO. 2 INTERCOOLER COOLING WATER HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

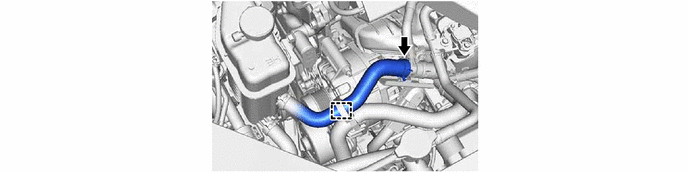

DISCONNECT NO. 3 INTERCOOLER COOLING WATER HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

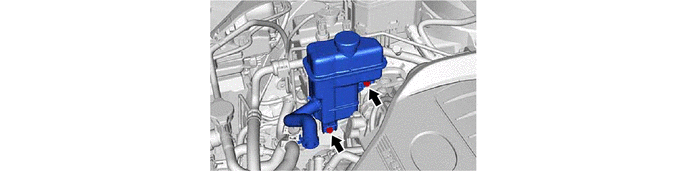

REMOVE INTERCOOLER RESERVE TANK ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT ENGINE WIRE

REMOVE GENERATOR ASSEMBLY

Remove the 2 nuts and bolt.
Using an E8 "TORX" socket wrench, remove the stud bolt and generator assembly.
