Reassembly [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL GENERATOR PULLEY WITH CLUTCH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Generator Pulley with Clutch	-	-
*a	Rotor Shaft	*b	T50 "TORX" Socket Wrench
*c	Torque Wrench Fulcrum Length	*d	Turn
*e	Hold	-	-

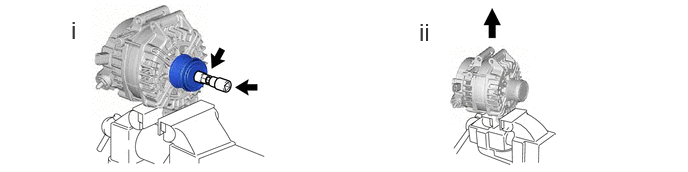

Secure the generator assembly in a vise between aluminum plates.
NOTE:
Do not overtighten the vise.
Temporarily install a new generator pulley with clutch to the rotor shaft.
Fit SST to the generator pulley with clutch.
- SST: 09820-30010
Fit a T50 "TORX" socket wrench into the rotor shaft end.
HINT:

Make sure that SST and the T50 "TORX" socket wrench are secured to the rotor shaft and generator pulley with clutch.
Using a 17 mm union nut wrench, tighten the generator pulley with clutch by turning SST as shown in the illustration.
Specified tightening torque

Torque: 80 N.m (816 kgf/cm, 59 ft.lbf)
NOTE:
- Check that the generator assembly is secured in the vise tightly.
- Hold the T50 "TORX" socket wrench tightly during the operation.
- Check that the generator pulley with clutch rotates smoothly.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
  Refer to PRECAUTION [12/2019 - 11/2023] , or refer to PRECAUTION [11/2023 - ]
- When using a 17 mm union nut wrench (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 400 mm (1.312 ft.)): 74.4 N.m (759 kgf/cm, 55 ft.lbf)

Remove SST and the T50 "TORX" socket wrench from the generator pulley with clutch.
Remove the generator assembly from the vise.

INSTALL GENERATOR PULLEY CAP
