Installation [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL GENERATOR ASSEMBLY

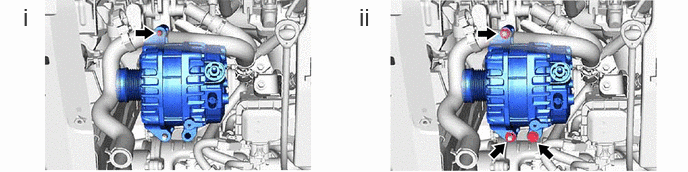

    1. GTY1105289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an E8 "TORX" socket wrench, temporarily install the generator assembly with the stud bolt.

        Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

      2. Install the generator assembly with the bolt and 2 nuts.

        Torque: 25 N.m (255 kgf/cm, 18 ft.lbf)

  2. CONNECT ENGINE WIRE

    Bolt

    Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    Nut

    Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  3. INSTALL INTERCOOLER RESERVE TANK ASSEMBLY

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  4. CONNECT NO. 3 INTERCOOLER COOLING WATER HOSE
  5. CONNECT NO. 2 INTERCOOLER COOLING WATER HOSE
  6. INSTALL V-RIBBED BELT

    Refer to INSTALLATION [10/2022 - ]

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  8. ADD COOLANT (for Intercooler)

    Refer to REPLACEMENT [10/2022 - ]
