Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

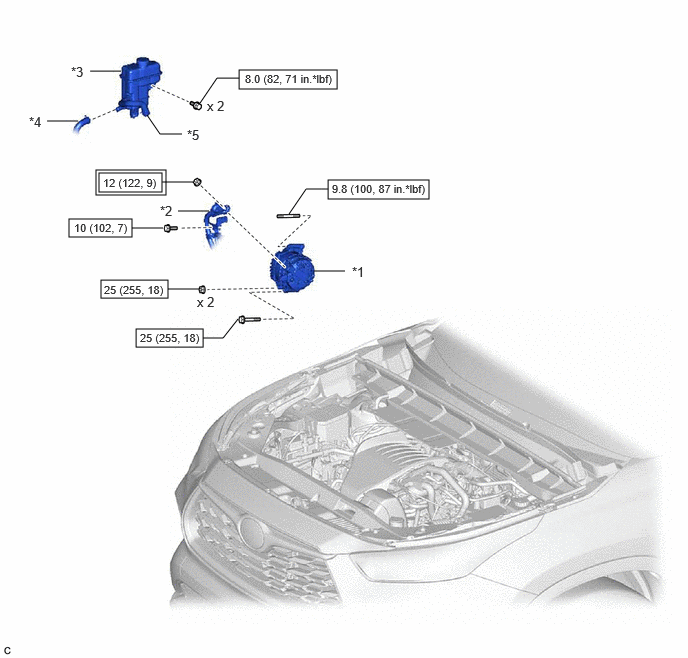

| Callout |
Description |
Callout |
Description |
| *1 |
GENERATOR ASSEMBLY |
*2 |
ENGINE WIRE |
| *3 |
INTERCOOLER RESERVE TANK ASSEMBLY |
*4 |
NO. 3 INTERCOOLER COOLING WATER HOSE |
| *5 |
NO. 2 INTERCOOLER COOLING WATER HOSE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

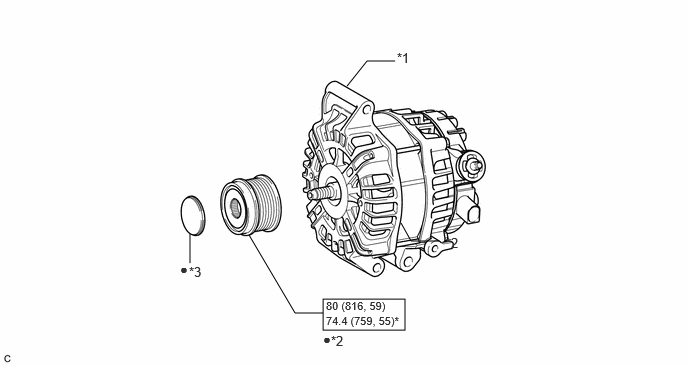

| Callout |
Description |
Callout |
Description |
| *1 |
GENERATOR ASSEMBLY |
*2 |
GENERATOR PULLEY WITH CLUTCH |
| *3 |
GENERATOR PULLEY CAP |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
