Installation [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL STARTER ASSEMBLY

    Bolt

    Torque: 46 N.m (469 kgf/cm, 34 ft.lbf)

    Nut

    Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

  2. INSTALL FLYWHEEL HOUSING SIDE COVER

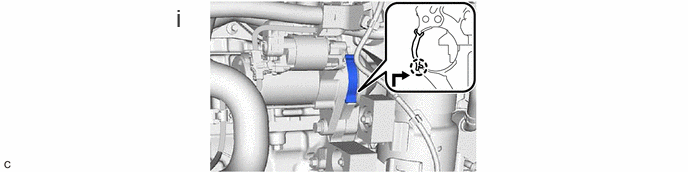

    1. GTY1108122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Align the protrusion with the cylinder block sub-assembly and engage the claw as shown in the illustration to install the flywheel housing side cover.
        NOTE:
        • Make sure the claw makes a click sound, indicating that it fits tightly.
        • Replace the flywheel housing side cover with a new one if the claw does not fit tightly or is deformed.
  3. CONNECT ENGINE WIRE
  4. INSTALL INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]

  5. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 52

  6. CONNECT NO. 2 VENTILATION HOSE

    Refer to PROCEDURE - Step 53

  7. INSTALL AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 4

  8. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. INSTALL COOL AIR INTAKE DUCT SEAL
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  11. ADD COOLANT (for Intercooler)

    Refer to REPLACEMENT [10/2022 - ]

  12. ADD ENGINE COOLANT

    Refer to REPLACEMENT [10/2022 - ]
