Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

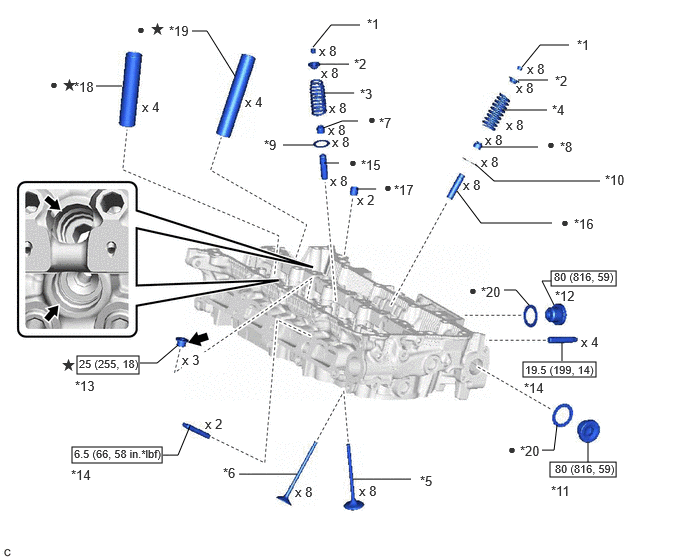

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | VALVE SPRING RETAINER LOCK | *2 | VALVE SPRING RETAINER |
| *3 | INTAKE VALVE COMPRESSION SPRING | *4 | EXHAUST VALVE COMPRESSION SPRING |
| *5 | INTAKE VALVE | *6 | EXHAUST VALVE |
| *7 | INTAKE VALVE STEM OIL SEAL | *8 | EXHAUST VALVE STEM OIL SEAL |
| *9 | INTAKE VALVE SPRING SEAT | *10 | EXHAUST VALVE SPRING SEAT |
| *11 | NO. 1 WITH HEAD STRAIGHT SCREW PLUG | *12 | NO. 2 WITH HEAD STRAIGHT SCREW PLUG |
| *13 | NO. 3 WITH HEAD STRAIGHT SCREW PLUG | *14 | STUD BOLT |
| *15 | INTAKE VALVE GUIDE BUSH | *16 | EXHAUST VALVE GUIDE BUSH |
| *17 | RING PIN | *18 | SPARK PLUG TUBE |
| *19 | FUEL INJECTOR TUBE | *20 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
