Removal [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 2

  3. REMOVE CRANKSHAFT PULLEY ASSEMBLY

    Refer to PROCEDURE - Step 22

  4. REMOVE TIMING CHAIN CASE OIL SEAL

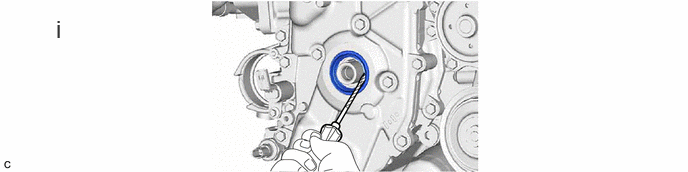

    1. GTY1108876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain case oil seal.
        NOTE:

        After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
