Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

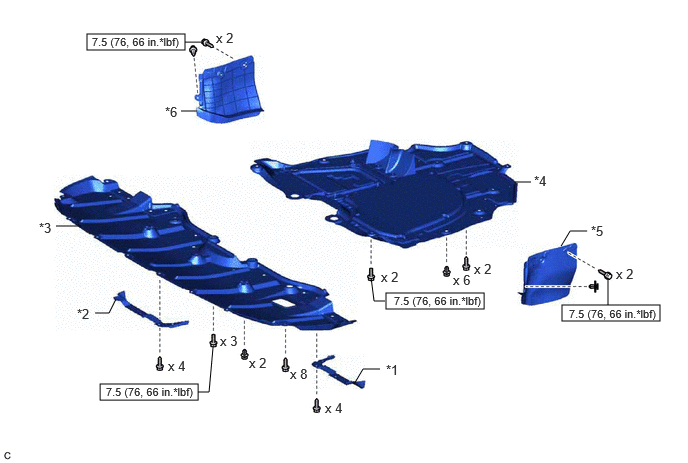

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 13)
GTY1107035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT WHEEL OPENING EXTENSION PAD LH *2 FRONT WHEEL OPENING EXTENSION PAD RH
*3 NO. 1 ENGINE UNDER COVER *4 NO. 2 ENGINE UNDER COVER ASSEMBLY
*5 FRONT FENDER APRON SEAL LH *6 FRONT FENDER APRON SEAL RH
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 13)
GTY1103881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FLOOR COVER RH *2 FRONT FLOOR COVER LH
N*m (kgf*cm, ft.*lbf): Specified torque - -

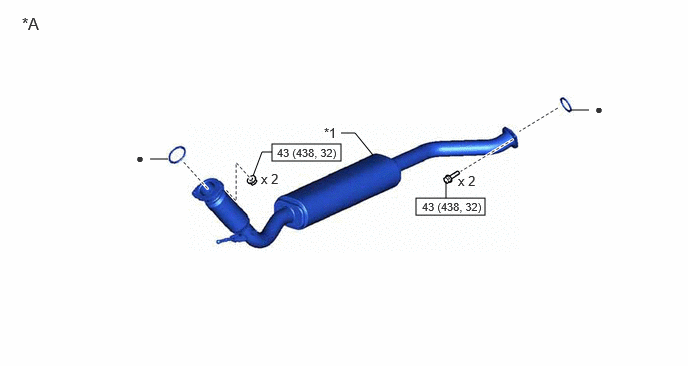

Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 13)
GTY1109070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A For 2WD - -
*1 FRONT EXHAUST PIPE ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 13)
GTY1104525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER LOWER ABSORBER *2 NO. 2 FRONT BUMPER REINFORCEMENT
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 13)
GTY1108328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 INLET AIR CLEANER ASSEMBLY
*3 AIR CLEANER ASSEMBLY *4 AIR CLEANER HOSE ASSEMBLY
*5 ECM *6 BATTERY CLAMP SUB-ASSEMBLY
*7 NO. 2 ENGINE WIRE *8 ENGINE ROOM MAIN WIRE
*9 CONNECTOR COVER *10 NO. 2 VENTILATION HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -

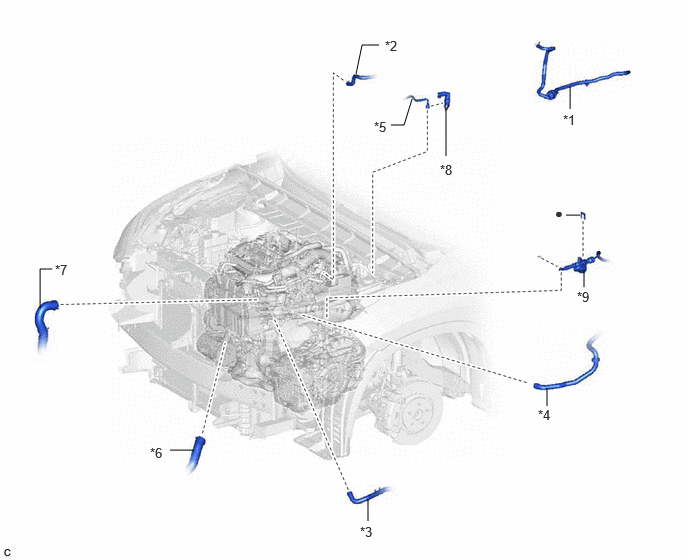

Fig 6: Engine Assembly Replacement Components (6 Of 13)
GTY1107950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL VAPOR FEED HOSE ASSEMBLY *2 VACUUM HOSE ASSEMBLY
*3 INLET HEATER WATER HOSE B *4 OUTLET HEATER WATER HOSE B
*5 FUEL TUBE SUB-ASSEMBLY *6 NO. 1 RADIATOR HOSE
*7 NO. 2 RADIATOR HOSE *8 EFI FUEL PIPE CLAMP (Fuel Tube Sub-assembly Side)
*9 TRANSMISSION CONTROL CABLE ASSEMBLY - -
• Non-reusable part - -
Fig 7: Engine Assembly Replacement Components With Torque Specifications (7 Of 13)
GTY1107953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 INTERCOOLER COOLING WATER HOSE *2 NO. 2 INTERCOOLER COOLING WATER HOSE
*3 SUCTION HOSE SUB-ASSEMBLY *4 NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
*5 WIRE HARNESS *6 NO. 5 WATER BY-PASS HOSE
*7 STEERING INTERMEDIATE SHAFT ASSEMBLY *8 NO. 1 RELAY BLOCK COVER
*9 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part Compressor oil ND-OIL 12 or equivalent

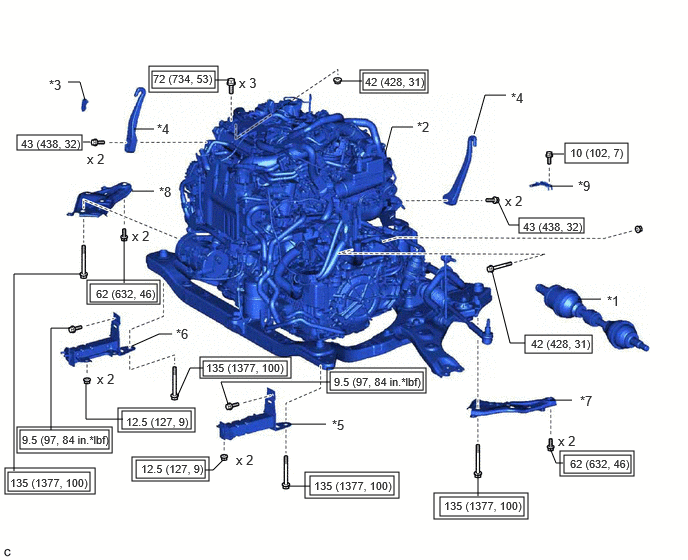

Fig 8: Engine Assembly Replacement Components With Torque Specifications (8 Of 13)
GTY1104277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DRIVE SHAFT ASSEMBLY *2 ENGINE ASSEMBLY WITH TRANSAXLE
*3 ENGINE MOUNTING BRACKET CAP *4 ENGINE HANGER
*5 FRONT BUMPER EXTENSION SUB-ASSEMBLY LH *6 FRONT BUMPER EXTENSION SUB-ASSEMBLY RH
*7 FRONT SUSPENSION MEMBER BRACE REAR LH *8 FRONT SUSPENSION MEMBER BRACE REAR RH
*9 WIRE HARNESS CLAMP BRACKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Fig 9: Engine Assembly Replacement Components With Torque Specifications (9 Of 13)
GTY1107262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A For 2WD - -
*1 FLYWHEEL HOUSING UNDER COVER *2 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*3 FLYWHEEL HOUSING SIDE COVER *4 STARTER ASSEMBLY
*5 VACUUM HOSE SUB-ASSEMBLY *6 BREATHER PLUG HOSE
*7 WATER BY-PASS HOSE ASSEMBLY *8 STEERING GEAR HEAT INSULATOR
*9 ENGINE WIRE *10 FRONT FRAME ASSEMBLY
*11 FRONT ENGINE MOUNTING INSULATOR *12 REAR ENGINE MOUNTING INSULATOR
*13 ENGINE MOUNTING INSULATOR LH *14 NO. 2 ENGINE WIRE
*a BLACK COLOR: x 1
SILVER COLOR: x 5		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Adhesive 1324 * Precoated part
Fig 10: Engine Assembly Replacement Components With Torque Specifications (10 Of 13)
GTY1103574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A For AWD - -
*1 FLYWHEEL HOUSING UNDER COVER *2 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*3 FLYWHEEL HOUSING SIDE COVER *4 STARTER ASSEMBLY
*5 VACUUM HOSE SUB-ASSEMBLY *6 BREATHER PLUG HOSE
*7 WATER BY-PASS HOSE ASSEMBLY *8 STEERING GEAR HEAT INSULATOR
*9 ENGINE WIRE *10 FRONT FRAME ASSEMBLY
*11 FRONT ENGINE MOUNTING INSULATOR *12 REAR ENGINE MOUNTING INSULATOR
*13 ENGINE MOUNTING INSULATOR LH *14 NO. 2 ENGINE WIRE
*a BLACK COLOR: x 1
SILVER COLOR: x 5		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Adhesive 1324 * Precoated part

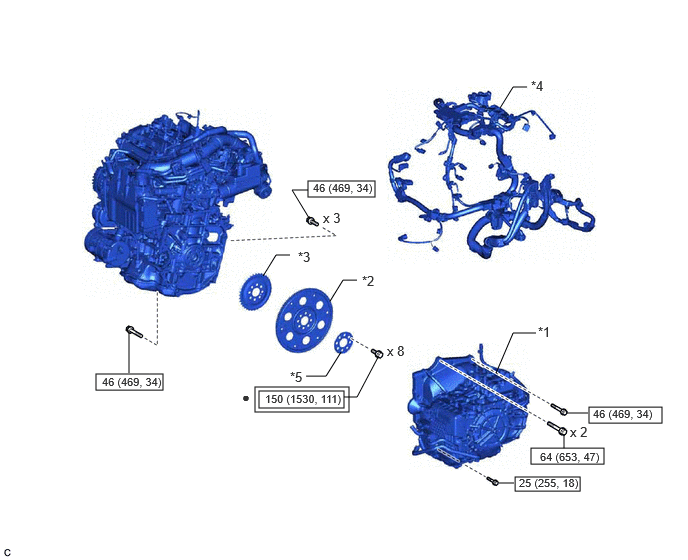

Fig 11: Engine Assembly Replacement Components With Torque Specifications (11 Of 13)
GTY1106269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSAXLE ASSEMBLY *2 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY
*3 NO. 1 CRANKSHAFT POSITION SENSOR PLATE *4 ENGINE WIRE
*5 REAR DRIVE PLATE SPACER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -
Fig 12: Engine Assembly Replacement Components With Torque Specifications (12 Of 13)
GTY1107807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-RIBBED BELT *2 GENERATOR ASSEMBLY
*3 COMPRESSOR ASSEMBLY WITH PULLEY *4 V-RIBBED BELT TENSIONER ASSEMBLY
*5 ENGINE HANGER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

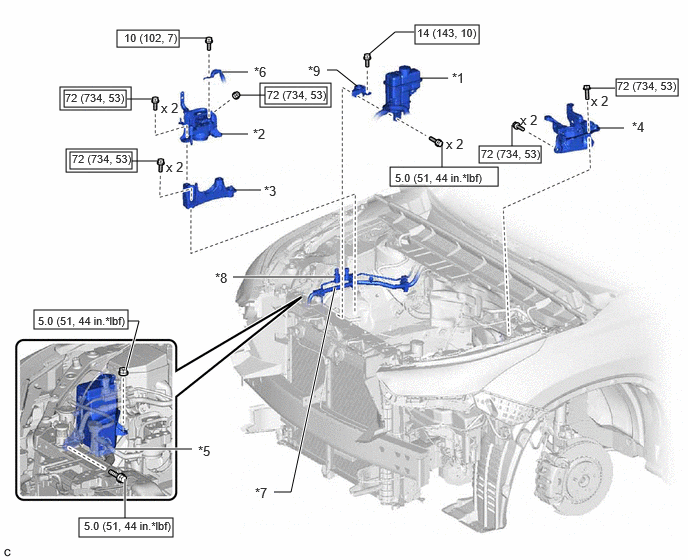

Fig 13: Engine Assembly Replacement Components With Torque Specifications (13 Of 13)
GTY1107567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INTERCOOLER RESERVE TANK ASSEMBLY *2 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
*3 ENGINE MOUNTING SPACER *4 ENGINE MOUNTING BRACKET SUB-ASSEMBLY LH
*5 RADIATOR RESERVE TANK ASSEMBLY *6 NO. 2 EARTH WIRE
*7 SUCTION PIPE SUB-ASSEMBLY *8 AIR CONDITIONING TUBE ASSEMBLY
*9 INTERCOOLER RESERVE TANK BRACKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
