Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

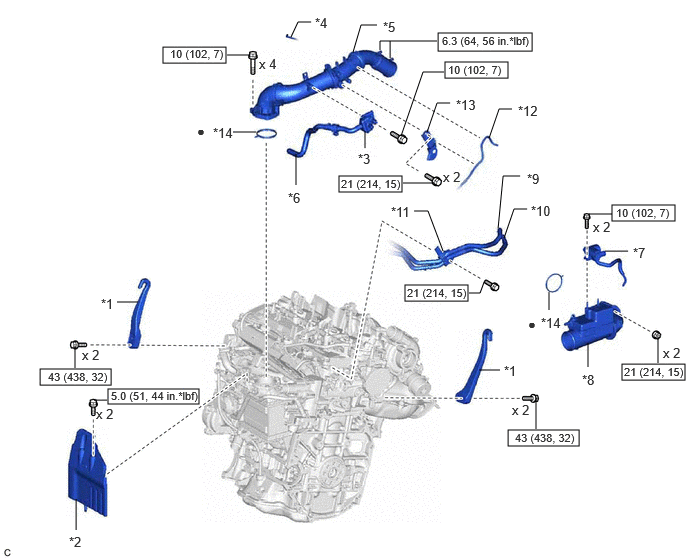

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 8)
GTY1107767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE HANGER *2 NO. 2 ENGINE COVER SUB-ASSEMBLY
*3 PURGE VALVE (PURGE VSV) *4 NO. 1 VENTILATION PRESSURE SENSOR HOSE
*5 AIR TUBE ASSEMBLY *6 NO. 2 FUEL VAPOR FEED HOSE
*7 VACUUM REGULATING VALVE ASSEMBLY *8 COMPRESSOR INLET ELBOW SUB-ASSEMBLY
*9 NO. 2 TURBO WATER HOSE *10 NO. 3 TURBO WATER HOSE
*11 WATER OUTLET STAY *12 VACUUM HOSE SUB-ASSEMBLY
*13 AIR TUBE SUPPORT *14 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

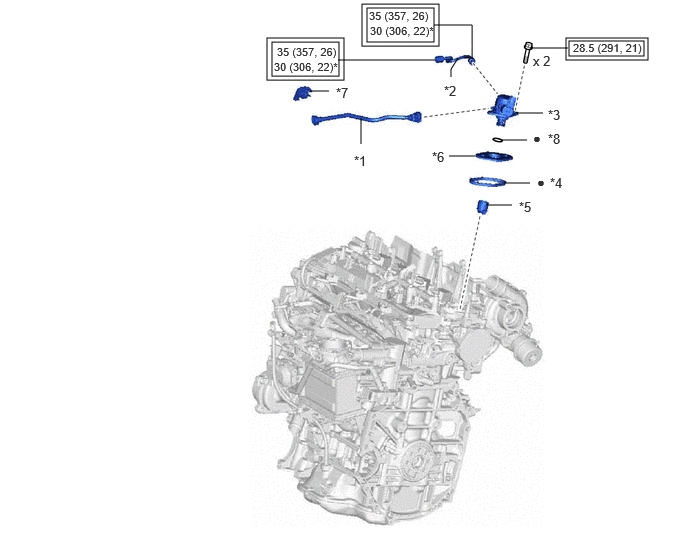

Fig 2: Camshaft Replacement Components With Torque Specifications (2 Of 8)
GTY1104139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL TUBE SUB-ASSEMBLY *2 NO. 1 FUEL PIPE SUB-ASSEMBLY
*3 FUEL PUMP ASSEMBLY *4 FUEL PUMP SPACER GASKET
*5 FUEL PUMP LIFTER ASSEMBLY *6 FUEL PUMP SPACER
*7 EFI FUEL PIPE CLAMP *8 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) * For use with a union nut wrench
• Non-reusable part - -

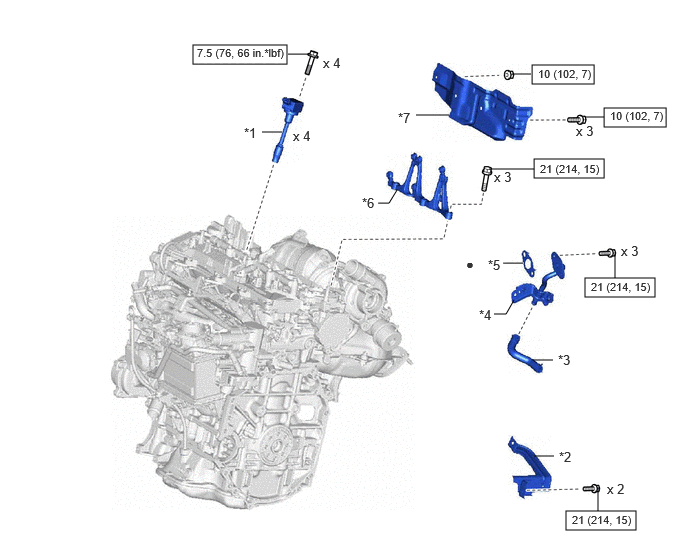

Fig 3: Camshaft Replacement Components With Torque Specifications (3 Of 8)
GTY1105156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 EXHAUST PIPE HEAT INSULATOR
*3 WATER BY-PASS HOSE *4 WATER BY-PASS PIPE SUB-ASSEMBLY
*5 WATER BY-PASS GASKET *6 NO. 1 HEAT INSULATOR BRACKET
*7 NO. 2 TURBO INSULATOR - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

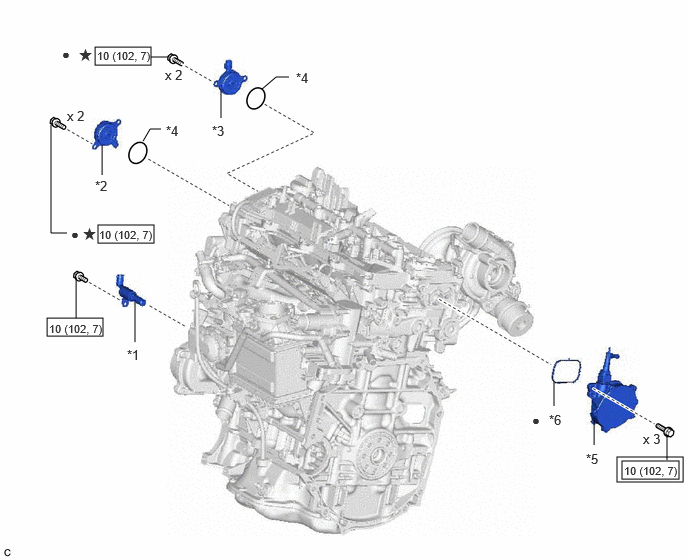

Fig 4: Camshaft Replacement Components With Torque Specifications (4 Of 8)
GTY1104731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PRESSURE CONTROL VALVE ASSEMBLY *2 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)
*3 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side) *4 CAM TIMING OIL CONTROL SOLENOID O-RING
*5 VACUUM PUMP ASSEMBLY *6 NO. 1 VACUUM PUMP O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part * Precoated part

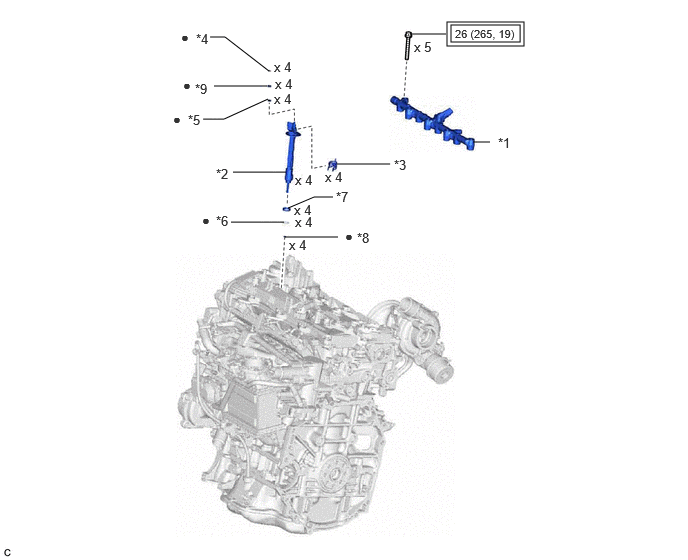

Fig 5: Camshaft Replacement Components With Torque Specifications (5 Of 8)
GTY1106131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL DELIVERY PIPE SUB-ASSEMBLY *2 DIRECT FUEL INJECTOR ASSEMBLY
*3 NOZZLE HOLDER CLAMP *4 NO. 3 FUEL INJECTOR BACK-UP RING
*5 NO. 1 FUEL INJECTOR BACK-UP RING *6 C-RING
*7 INJECTOR VIBRATION INSULATOR *8 FUEL INJECTOR SEAL
*9 O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part

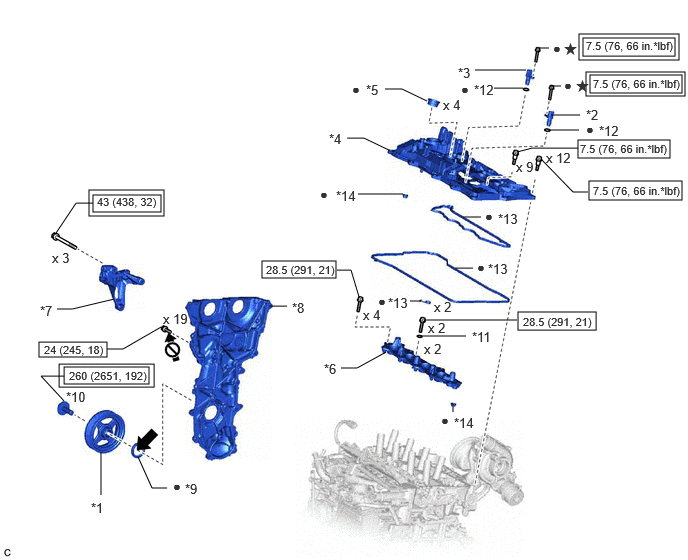

Fig 6: Camshaft Replacement Components With Torque Specifications (6 Of 8)
GTY1107018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT PULLEY ASSEMBLY *2 CAMSHAFT POSITION SENSOR (for Intake Side)
*3 CAMSHAFT POSITION SENSOR (for Exhaust Side) *4 CYLINDER HEAD COVER SUB-ASSEMBLY
*5 SPARK PLUG TUBE GASKET *6 INJECTOR HOLDER SUB-ASSEMBLY
*7 ENGINE MOUNTING BRACKET RH *8 NO. 2 TIMING CHAIN COVER ASSEMBLY
*9 TIMING CHAIN CASE OIL SEAL *10 CRANKSHAFT PULLEY BOLT
*11 PLATE WASHER *12 O-RING
*13 CYLINDER HEAD COVER GASKET *14 CAMSHAFT BEARING CAP OIL HOLE GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part MP grease
* Precoated part Do not apply lubricants to the threaded parts

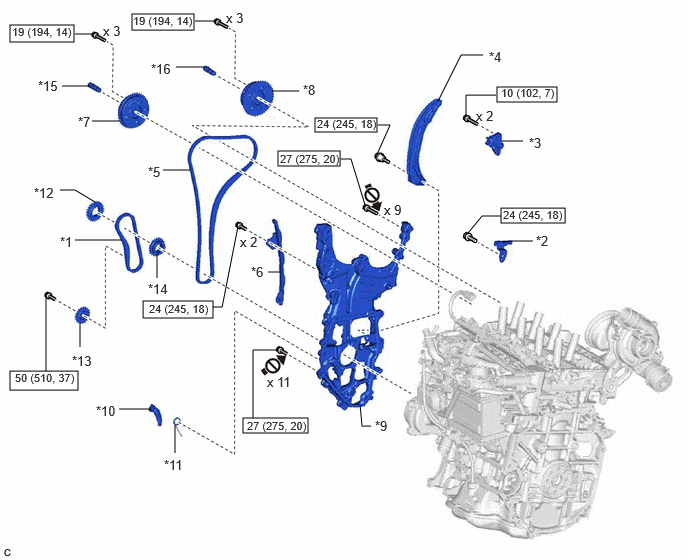

Fig 7: Camshaft Replacement Components With Torque Specifications (7 Of 8)
GTY1103071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PUMP DRIVE CHAIN SUB-ASSEMBLY *2 NO. 2 CHAIN VIBRATION DAMPER
*3 NO. 1 CHAIN TENSIONER ASSEMBLY *4 CHAIN TENSIONER SLIPPER
*5 CHAIN SUB-ASSEMBLY *6 NO. 1 CHAIN VIBRATION DAMPER
*7 CAMSHAFT TIMING GEAR ASSEMBLY *8 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
*9 TIMING CHAIN COVER ASSEMBLY *10 CHAIN TENSIONER PLATE
*11 CHAIN DAMPER SPRING *12 OIL PUMP DRIVE SPROCKET
*13 OIL PUMP DRIVE SHAFT SPROCKET *14 CRANKSHAFT TIMING GEAR OR SPROCKET
*15 INTAKE CAMSHAFT TIMING GEAR BOLT ASSEMBLY *16 EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque Do not apply lubricants to the threaded parts

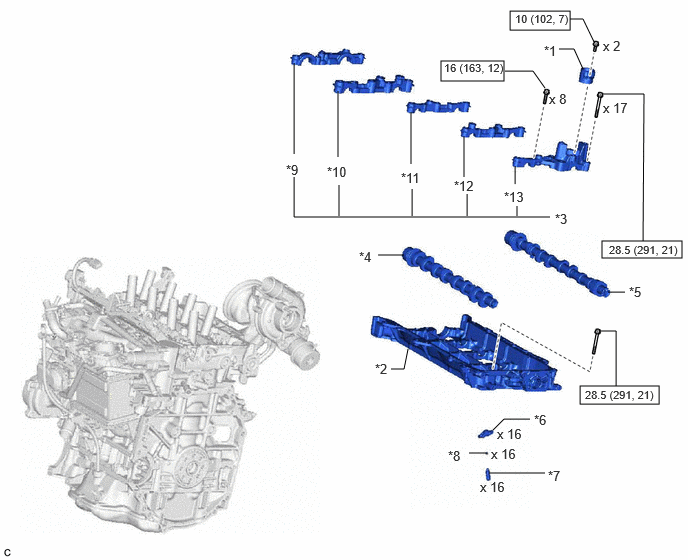

Fig 8: Camshaft Replacement Components With Torque Specifications (8 Of 8)
GTY1104611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL PUMP LIFTER GUIDE *2 CAMSHAFT HOUSING SUB-ASSEMBLY
*3 CAMSHAFT BEARING CAP *4 INTAKE CAMSHAFT SUB-ASSEMBLY
*5 EXHAUST CAMSHAFT SUB-ASSEMBLY *6 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*7 VALVE LASH ADJUSTER ASSEMBLY *8 VALVE STEM CAP
*9 NO. 1 CAMSHAFT BEARING CAP *10 NO. 2 CAMSHAFT BEARING CAP
*11 NO. 3 CAMSHAFT BEARING CAP *12 NO. 4 CAMSHAFT BEARING CAP
*13 NO. 5 CAMSHAFT BEARING CAP - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
