Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN COOLANT (for Intercooler)

    Refer to REPLACEMENT [10/2022 - ]

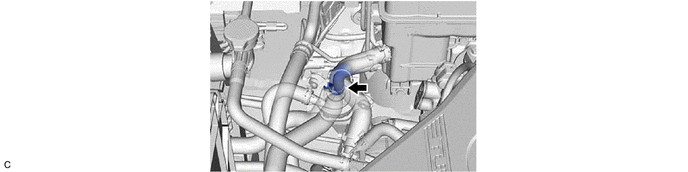

  2. DISCONNECT NO. 3 NTERCOOLER COOLING WATER HOSE
    1. GTY1106400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

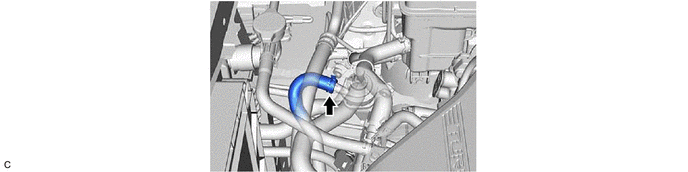

  3. DISCONNECT NO. 4 INTERCOOLER COOLING WATER HOSE
    1. GTY1106149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ELECTRIC WATER PUMP ASSEMBLY
    1. GTY1106148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
