Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

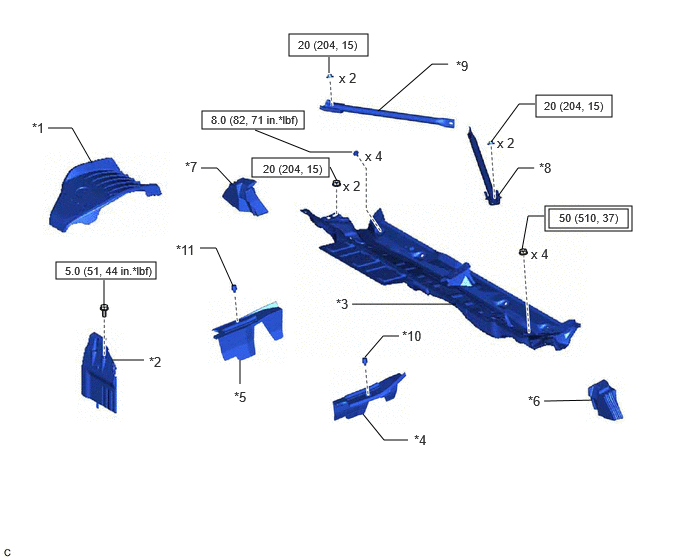

| Callout |
Description |
Callout |
Description |
| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
NO. 2 ENGINE COVER SUB-ASSEMBLY |
| *3 |
COWL VENTILATOR PANEL SUB-ASSEMBLY |
*4 |
FENDER REAR SPLASH SHIELD SUB-ASSEMBLY LH |
| *5 |
FENDER REAR SPLASH SHIELD SUB-ASSEMBLY RH |
*6 |
FRONT FENDER SPLASH SHIELD SEAL FRONT LH |
| *7 |
FRONT FENDER SPLASH SHIELD SEAL FRONT RH |
*8 |
FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH |
| *9 |
FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH |
*10 |
HOOD CENTER CUSHION LH |
| *11 |
HOOD CENTER CUSHION RH |
- |
- |
|
N.m (kgf/cm, ft.lbf): Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" |
|
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

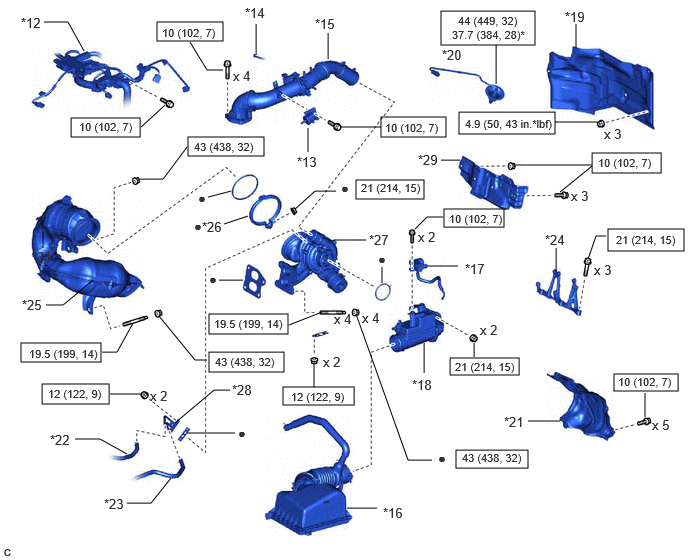

| Callout |
Description |
Callout |
Description |
| *12 |
DISCONNECT ENGINE WIRE |
*13 |
PURGE VALVE (PURGE VSV) |
| *14 |
NO. 2 VENTILATION HOSE |
*15 |
AIR TUBE ASSEMBLY |
| *16 |
AIR CLEANER CAP WITH AIR CLEANER HOSE |
*17 |
VACUUM REGULATING VALVE ASSEMBLY |
| *18 |
COMPRESSOR INLET ELBOW SUB-ASSEMBLY |
*19 |
DASH PANEL HEAT INSULATOR |
| *20 |
AIR FUEL RATIO SENSOR (for Sensor 1) |
*21 |
NO. 1 TURBO INSULATOR |
| *22 |
NO. 2 TURBO WATER HOSE |
*23 |
NO. 3 TURBO WATER HOSE |
| *24 |
NO. 1 HEAT INSULATOR BRACKET |
*25 |
CONVERTER WITH CATALYST ASSEMBLY |
| *26 |
EXHAUST PIPE CLAMP |
*27 |
TURBOCHARGER SUB-ASSEMBLY |
| *28 |
NO. 1 TURBO WATER PIPE SUB-ASSEMBLY |
*29 |
NO. 2 TURBO INSULATOR |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST or union nut wrench |
| • |
Non-reusable part |
- |
- |
