Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

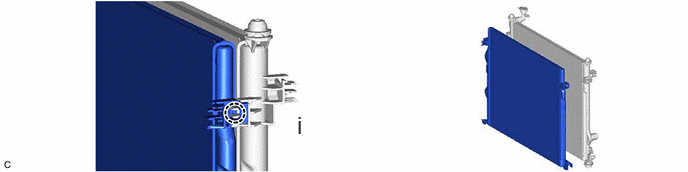

  2. REMOVE INTERCOOLER COOLING RADIATOR ASSEMBLY
    1. GTY1104222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the 2 clamps.
