Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INTERCOOLER COOLING RADIATOR ASSEMBLY

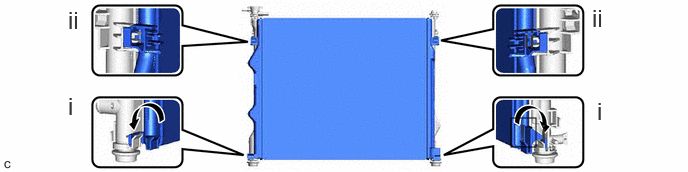

    1. GTY1107031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 2 guides.
      2. Engage the 2 claws to install the intercooler cooling radiator assembly to the radiator assembly.
        NOTE:

        Do not damage the radiator assembly when installing the intercooler cooling radiator assembly.

  2. INSTALL RADIATOR ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]
