Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE NO. 1 TURBO PRESSURE SENSOR
    NOTE:

    If the No. 1 turbo pressure sensor has been struck or dropped, replace it.

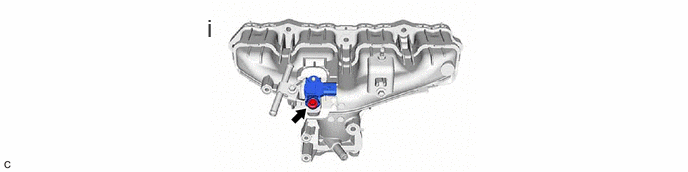

    1. GTY1104696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and No. 1 turbo pressure sensor from the intake manifold.
  3. REMOVE NO. 3 WATER BY-PASS PIPE

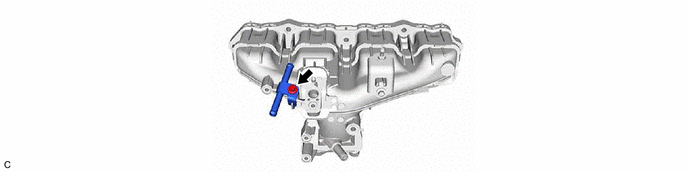

    1. GTY1080217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ENGINE COVER BRACKET

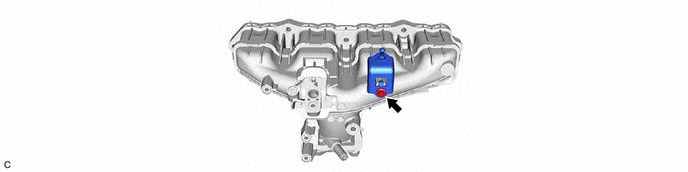

    1. GTY1080220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
