Section 23 (Engine Intake / Exhaust System (T24A-FTS) - Service Information)
>>
Intake Manifold
>>
Components [10/2022 - ]
Components [10/2022 - ]
WARNING:
This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

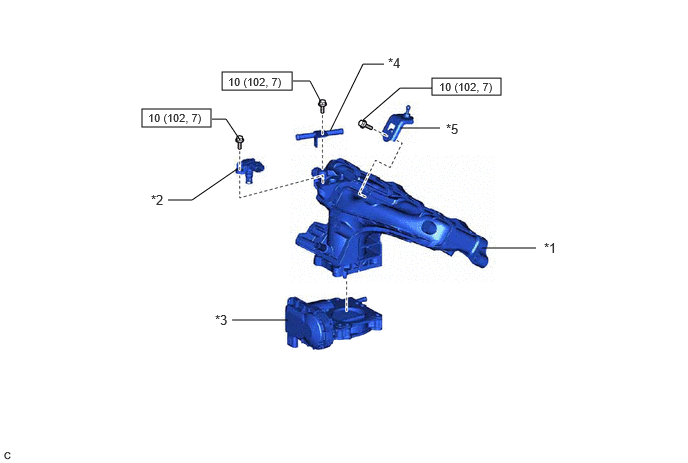

Fig 1: Intake Manifold Replacement Components With Torque Specifications [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
INTAKE MANIFOLD
*2
NO. 1 TURBO PRESSURE SENSOR
*3
THROTTLE BODY WITH MOTOR ASSEMBLY
*4
NO. 3 WATER BY-PASS PIPE
*5
ENGINE COVER BRACKET
-
THROTTLE BODY GASKET
N.m (kgf/cm, ft.lbf): Specified torque
-
-
