Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

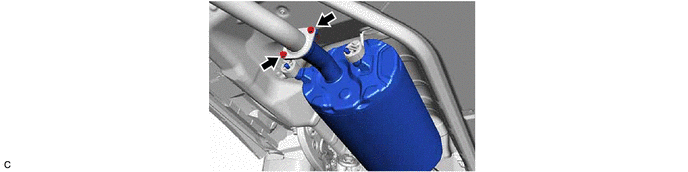

    1. GTY1106404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

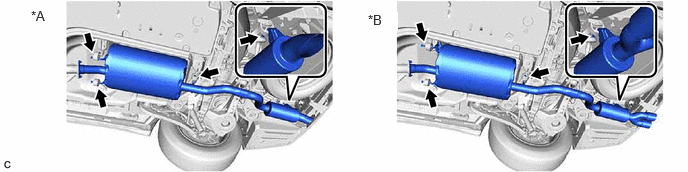

    2. GTY1105172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A *B Type B
  2. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

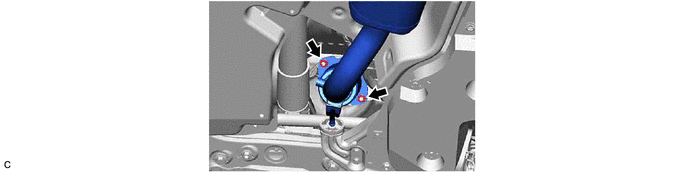

    1. GTY1109017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY1106402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
