Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

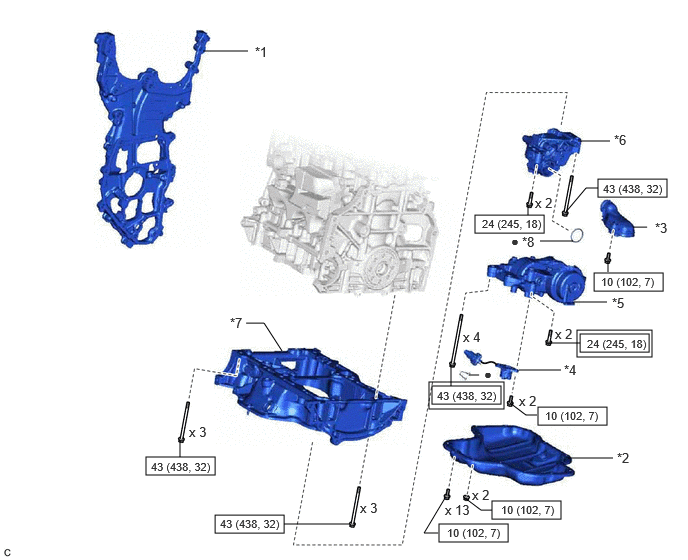

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TIMING CHAIN COVER ASSEMBLY | *2 | NO. 2 OIL PAN SUB-ASSEMBLY |
| *3 | OIL STRAINER SUB-ASSEMBLY | *4 | ENGINE OIL LEVEL SENSOR |
| *5 | ENGINE BALANCER ASSEMBLY | *6 | OIL PUMP ASSEMBLY |
| *7 | STIFFENING CRANKCASE ASSEMBLY | *8 | OIL STRAINER GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
