Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 12 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 12 [11/2023 - ]

  2. REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY

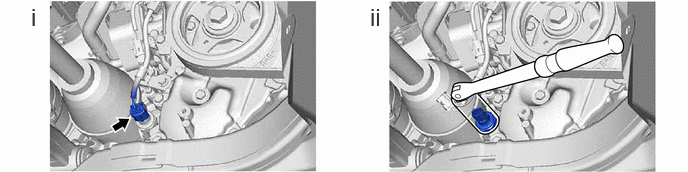

    1. GTY1105714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the oil pressure sender gauge assembly connector.
      2. Using a 27 mm deep socket wrench, remove the oil pressure sender gauge assembly.
        NOTE:

        If the oil pressure sender gauge assembly is dropped or subjected to a strong impact, replace it with a new one.
