Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL OIL PRESSURE SENDER GAUGE ASSEMBLY

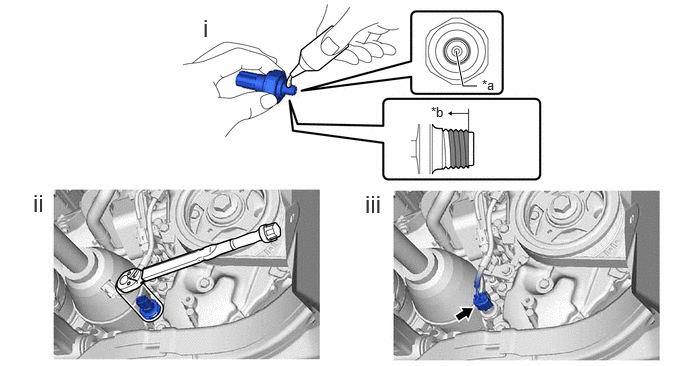

*a Oil Inlet Port *b 3 Threads or More Adhesive Application Area - - - Apply adhesive to the area shown in the illustration.
Adhesive
Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent
NOTE:- Do not apply adhesive to the oil inlet port of the oil pressure sender gauge assembly.
- Apply the adhesive to the first 3 threads or more of the oil pressure sender gauge assembly.
- Apply adhesive to the entire circumference of the thread.
- Using a 27 mm deep socket wrench, install the oil pressure sender gauge assembly.
Torque: 15 N.m (153 kgf/cm, 11 ft.lbf)
NOTE:Do not start the engine within 1 hour of installation.
- Connect the oil pressure sender gauge assembly connector.
- Apply adhesive to the area shown in the illustration.
- INSPECT FOR ENGINE OIL LEAK
Refer to PROCEDURE - Step 6
- CHECK ENGINE OIL LEVEL
Refer to PROCEDURE - Step 1 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 1 [11/2023 - ]
- INSTALL FRONT FENDER APRON SEAL RH
Refer to PROCEDURE - Step 83 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 83 [11/2023 - ]
