Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

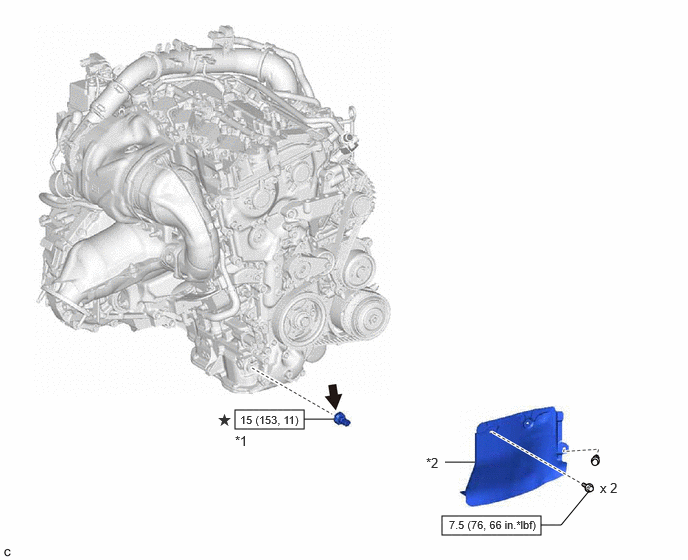

Fig 1: Oil Pressure Sensor Replacement Components With Torque Specifications [10/2022 - ]
GTY1108690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PRESSURE SENDER GAUGE ASSEMBLY *2 FRONT FENDER APRON SEAL RH
N.m (kgf/cm, ft.lbf): Specified torque Adhesive 1344
* Precoated part - -
