Inspection [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT ENGINE OIL LEVEL SENSOR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (LOIL) - Engine oil level sensor body ON Below 1 Ω
      OFF 10 kΩ or higher

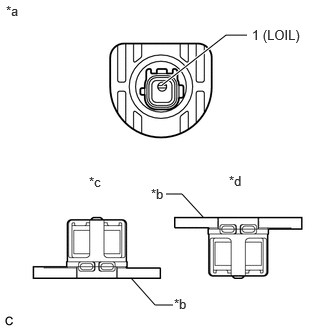

      GTY1108698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Engine Oil Level Sensor)
      *b Engine Oil Level Sensor Body
      *c ON
      *d OFF

      If the result is not as specified, replace the engine oil level sensor.
