Removal [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. DRAIN FUEL
  3. REMOVE FRONT FLOOR COVER LH
    1. Remove the 2 bolts (A), 8 screws (B) and clip (C).
      GTY1105377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 grommets (D) to remove the front floor cover LH.
  4. REMOVE NO. 1 FLOOR UNDER COVER
    1. Remove the 4 screws (A), clip (B), clip (C) and clip (D).
      GTY1106635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 grommets (E) to remove the No. 1 floor under cover.
  5. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

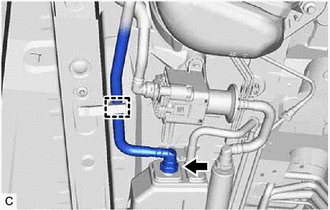

  6. DISCONNECT FUEL TANK EVAPORATION VENT TUBE SUB-ASSEMBLY
    1. Disengage the clamp and disconnect the fuel tank evaporation vent tube sub-assembly from the canister (charcoal canister assembly).

      Refer to PRECAUTION [10/2022 - ]

      GTY1107688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

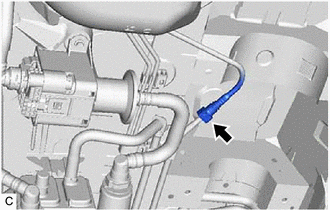

  7. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Disconnect the fuel tank main tube sub-assembly from the fuel pipe.
      GTY1107690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2022 - ]

  8. REMOVE FUEL TANK SUB-ASSEMBLY
    WARNING:

    The fuel tank sub-assembly is very heavy. Be sure to follow the procedure described in the repair information, or the fuel tank sub-assembly may fall off the engine lifter.

    1. Disconnect the fuel tank breather tube sub-assembly from the fuel tank filler pipe sub-assembly.
      GTY887356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2022 - ]

    2. Disconnect the lower fuel tank filler pipe sub-assembly from the fuel tank filler pipe sub-assembly.
      GTY887347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [10/2022 - ]

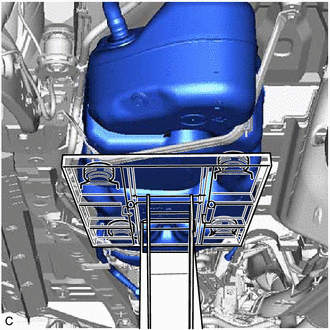

    3. Support the fuel tank sub-assembly using an engine lifter.
      GTY1109292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Using height adjustment attachments and plate lift attachments, keep the fuel tank sub-assembly horizontal.

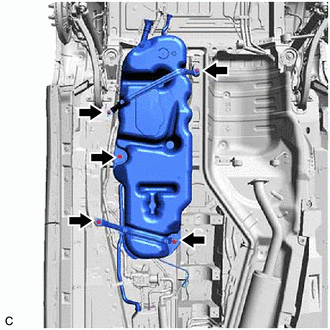

    4. Remove the 5 bolts, No. 1 fuel tank band sub-assembly and No. 2 fuel tank band sub-assembly.
      GTY1107685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Lower the engine lifter to remove the fuel tank sub-assembly.
      NOTE:
      • Be careful not to drop the fuel tank sub-assembly.
      • When removing the fuel tank sub-assembly, tilt it slightly to prevent it from interfering with the surrounding parts.

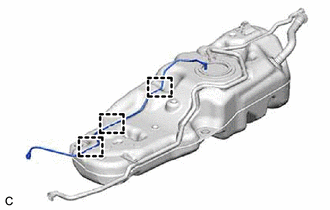

  9. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Disengage the 3 clamps to remove the fuel tank main tube sub-assembly from the fuel tank sub-assembly.
      GTY1107684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FUEL TANK EVAPORATION VENT TUBE SUB-ASSEMBLY

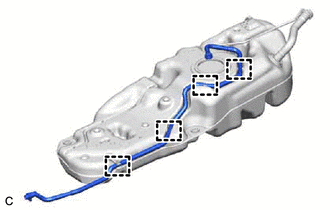

    1. Disengage the 4 clamps to remove the fuel tank evaporation vent tube sub-assembly from the fuel tank sub-assembly.
      GTY936998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

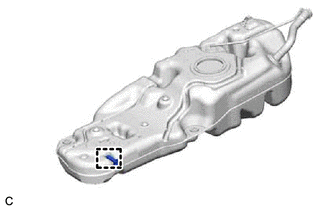

  11. REMOVE NO. 1 FUEL TUBE CLAMP
    1. Disengage the clamp to remove the No. 1 fuel tube clamp from the fuel tank sub-assembly.
      GTY887341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

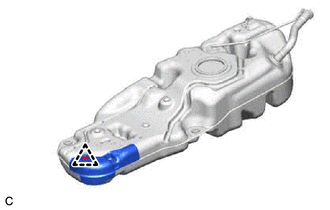

  12. REMOVE NO. 2 FUEL TANK PROTECTOR
    1. Remove the clip and No. 2 fuel tank protector from the fuel tank sub-assembly.
      GTY887343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

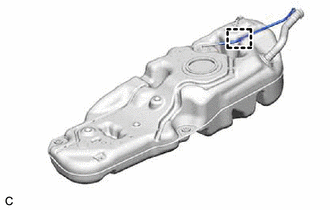

  13. REMOVE NO. 2 FUEL TUBE CLAMP
    1. Disengage the clamp to separate the fuel tank breather tube sub-assembly from the fuel tank sub-assembly.
      GTY887334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

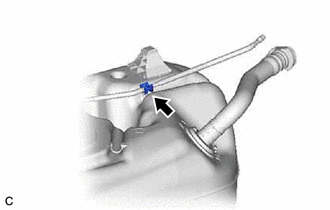

    2. Remove the No. 2 fuel tube clamp from the fuel tank breather tube sub-assembly.
      GTY936997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 6 FUEL TANK CUSHION

    HINT:

    Perform this procedure only when replacement of the No. 6 fuel tank cushion is necessary.

    1. Remove the 3 No. 6 fuel tank cushions from the fuel tank sub-assembly.
      GTY887337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

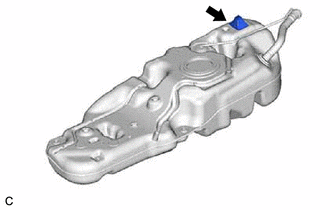

  15. REMOVE NO. 1 FUEL TANK CUSHION

    HINT:

    Perform this procedure only when replacement of the No. 1 fuel tank cushion is necessary.

    1. Remove the No. 1 fuel tank cushion from the fuel tank sub-assembly.
      GTY887328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
