Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR CARPET ASSEMBLY | *2 | REAR FLOOR SILENCER |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PUMP GAUGE RETAINER | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | FUEL TANK EVAPORATION VENT TUBE SUB-ASSEMBLY |
| *5 | REAR FLOOR SERVICE HOLE COVER | *6 | NO. 1 FUEL TUBE CLAMP |
| *7 | TUBE JOINT CLIP | *8 | FUEL SUCTION TUBE SET GASKET |
| *9 | BUTYL TAPE | - | - |
| • | Non-reusable part | - | - |

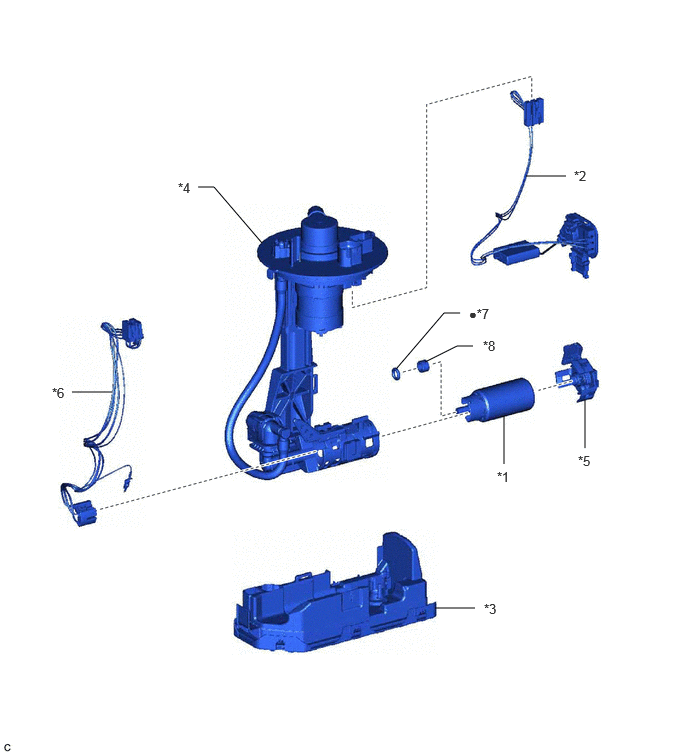

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | FUEL SUB-TANK SUB-ASSEMBLY | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL SUCTION SUPPORT | *6 | FUEL PUMP HARNESS |
| *7 | O-RING | *8 | FUEL PUMP SPACER |
| • | Non-reusable part | - | - |
