Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

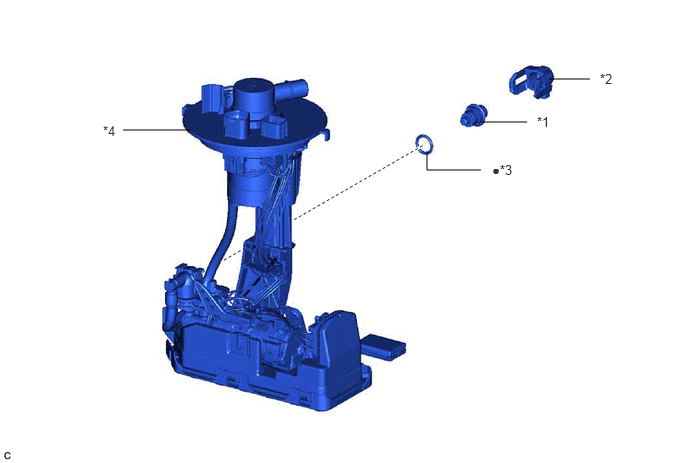

Fig 1: Fuel Main Valve Replacement Components
GTY892797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL MAIN VALVE ASSEMBLY *2 FUEL PRESSURE REGULATOR HOLDER
*3 O-RING *4 FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
• Non-reusable part - -
